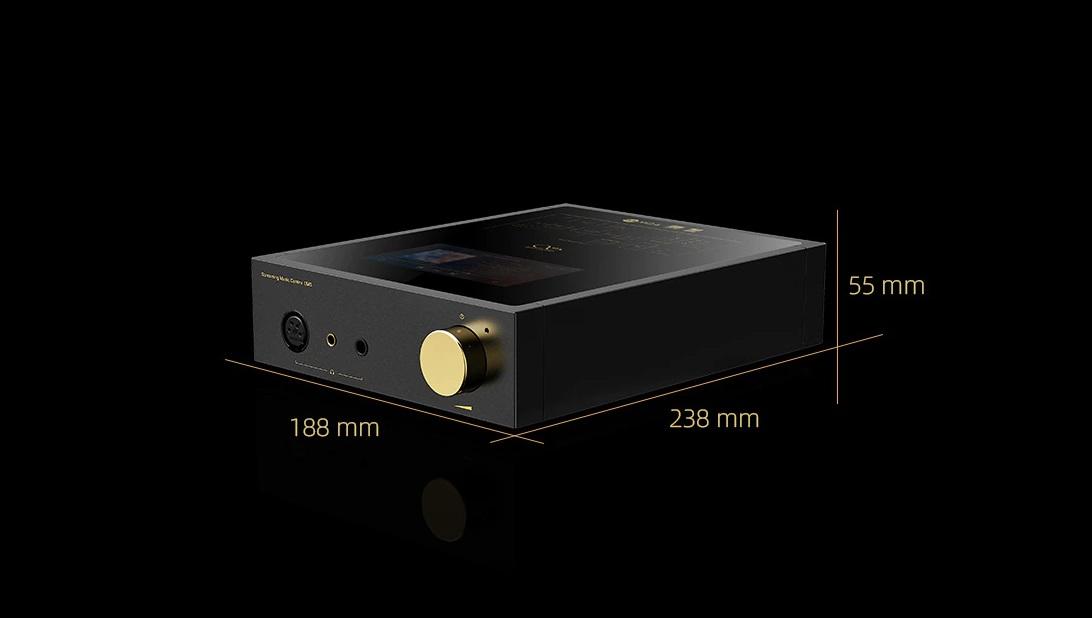

SHANLING EM5 DAC-AMP-Streamer

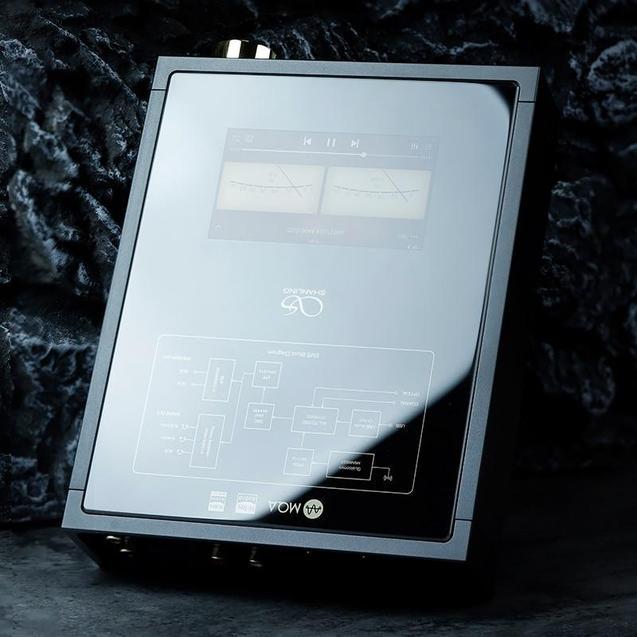

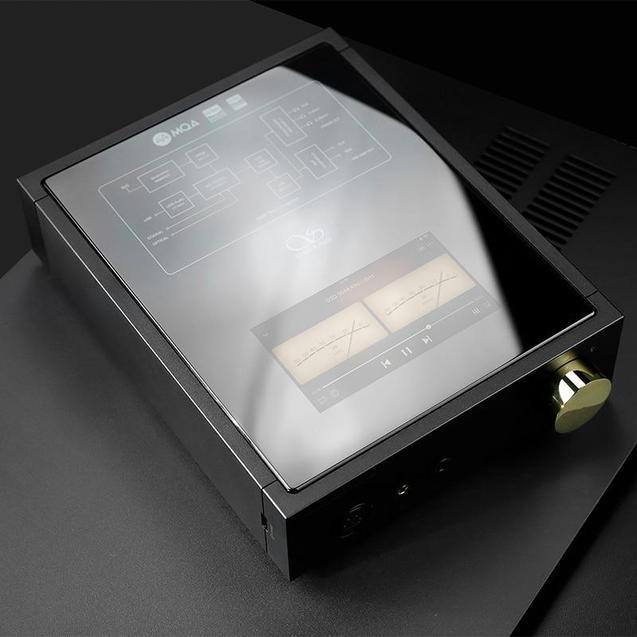

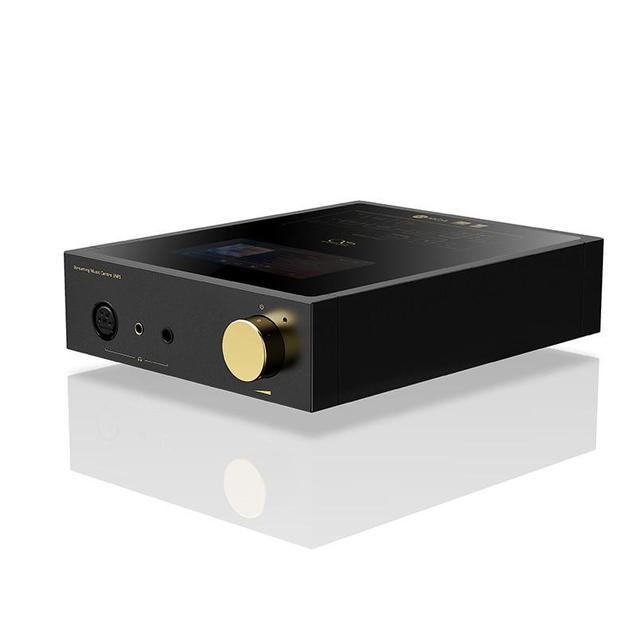

The EM5 is part of Shanling’ss new desktop line, build around the same streaming player we introduced with the Shanling M30. EM5 was designed as a DAC/AMP for high-end headphones, with a range of different connectors, including balanced XLR and 4.4mm. It can also be used as a DAC and pre-amplifier when combined with a separate power amplifier or active speakers. Shanling EM5 comes with a 4.7″ touch screen.

You can control EM5 both from the touch screen or from the Eddict Plater app both for iOS and Android.

Specification

System: Closed Customized Android, with build-in streaming apps

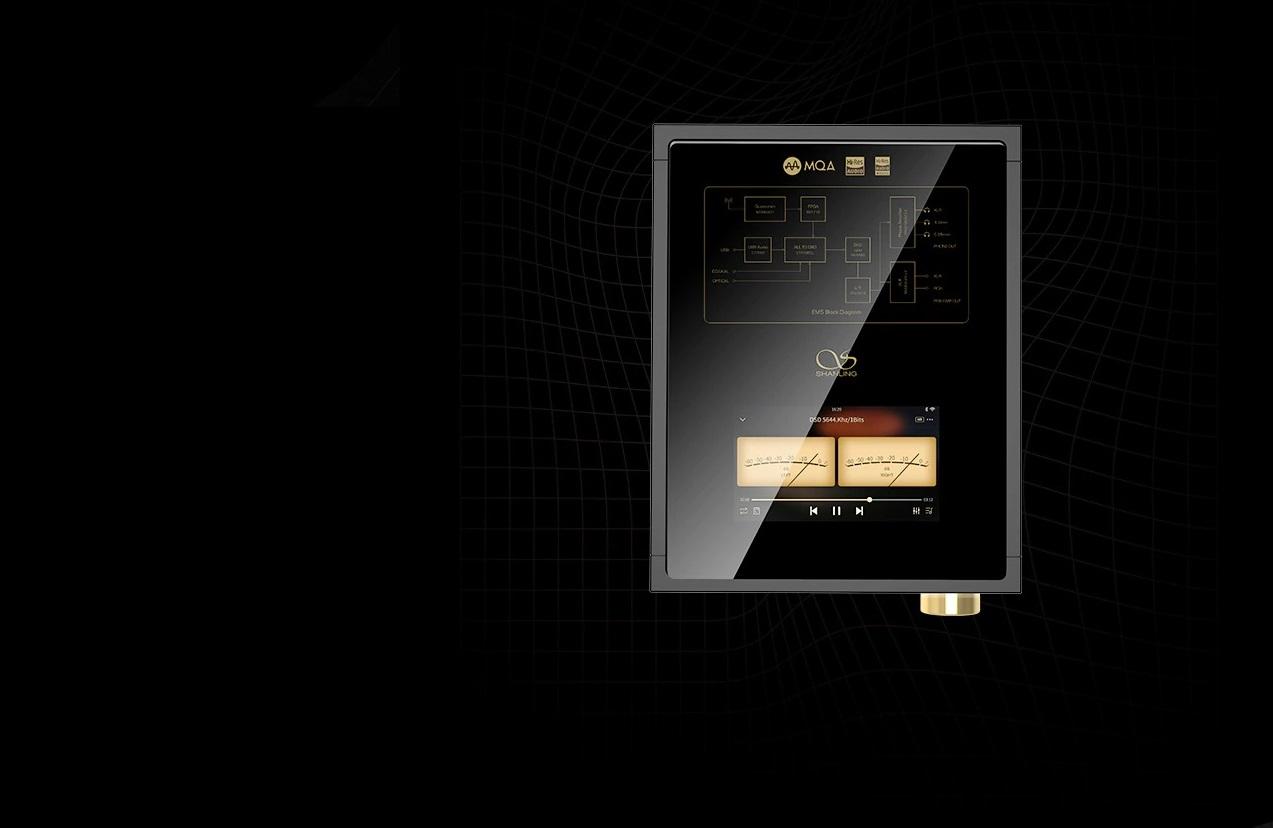

Display: Touch 4.7-inch HD

Power supply: Separated power for analog and digital section

Analog: Low noise Toroidal transformer

Digital: Switching power supply

Analog circuit

AKM AK4493 DAC

OPA2211 as low pass filter*

2X TPA6120A2 for headphone output

2X Muse8920 for pre-amp output

3rd Generation FPGA

CPAF Filter technology

KDS Crystal oscillator

Panasonic Tantalum capacitors

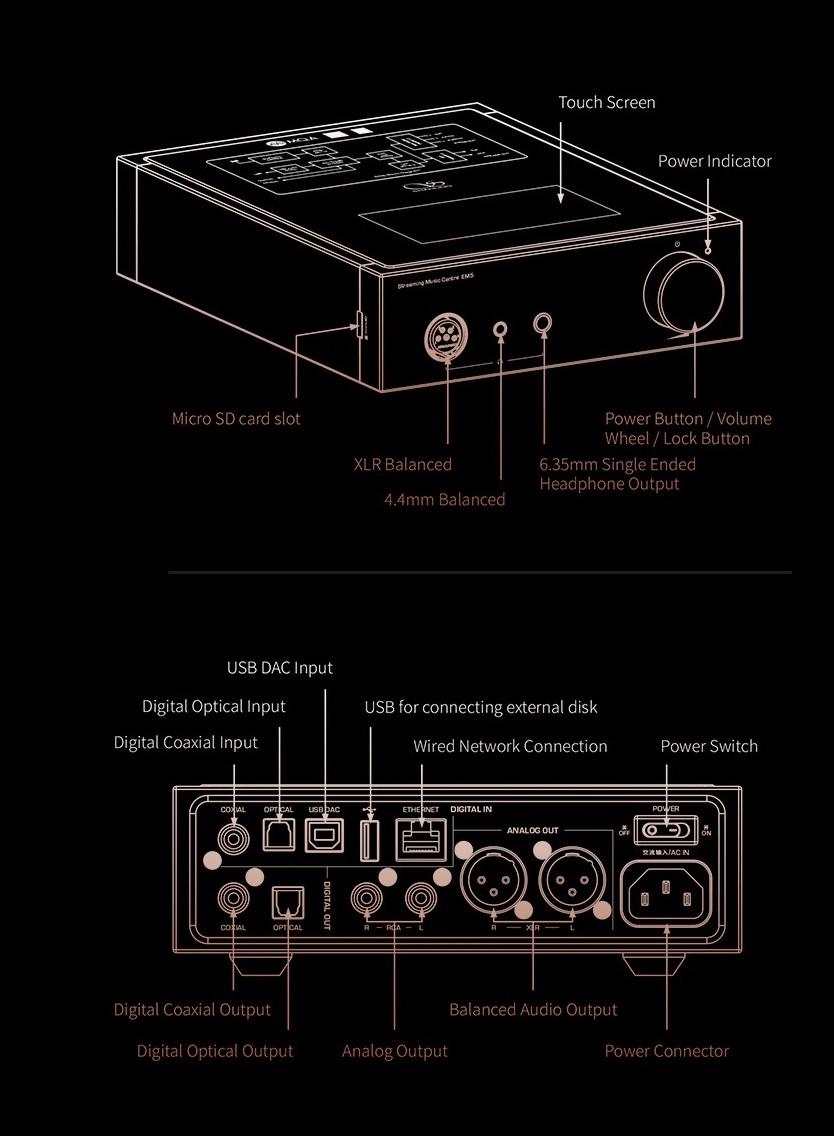

Headphone Outputs

6.35mm single ended, 4.4mm & 4pin XLR Balanced

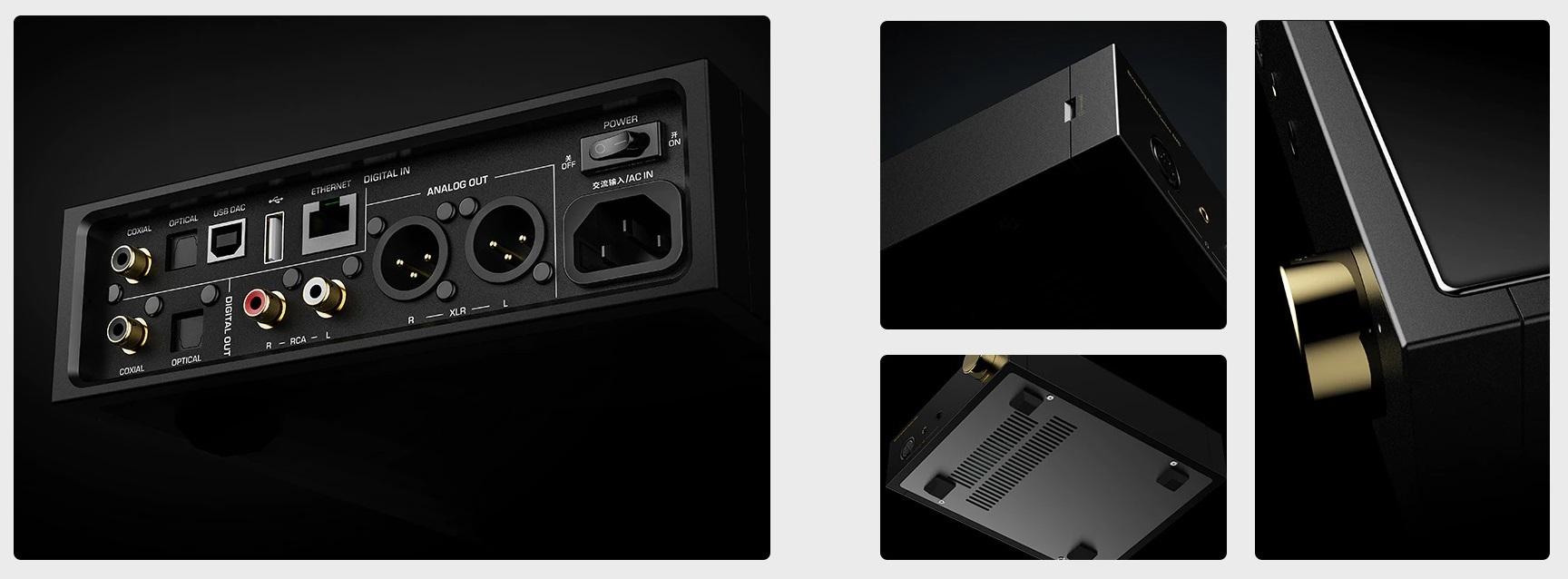

Pre-amp outputs: RCA & XLR Outputs

Digital input: USB, Coaxial, optical, LAN and external driver USB slot

Digital output: Coaxial & Optical

Output power

Single ended 6.35mm – 540mW @ 32Ohm

Balanced – 1620mW @ 32Ohm

Wireless connection

Wifi 2.4 & 5G

Support DLNA and AIrplay

Two-way Bluetooth 4.2, with LDAC support

Audio support

PCM 32/384

DSD256 native, DSD512 software

8x MQA

Price: 849$
