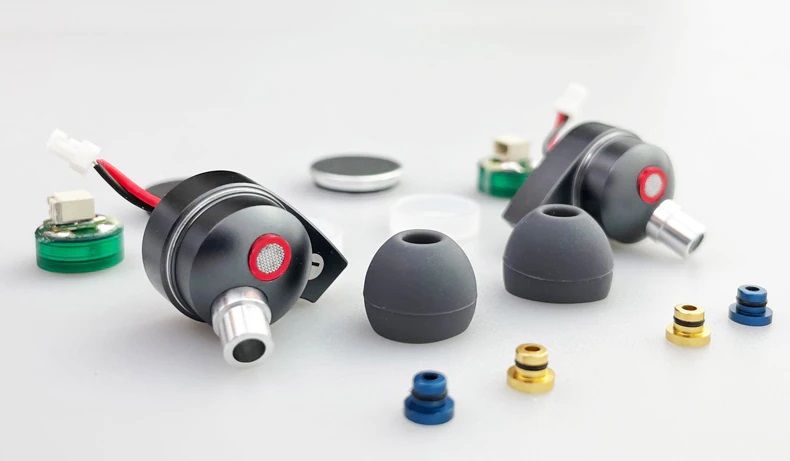

Smabat Proto 1.0 7

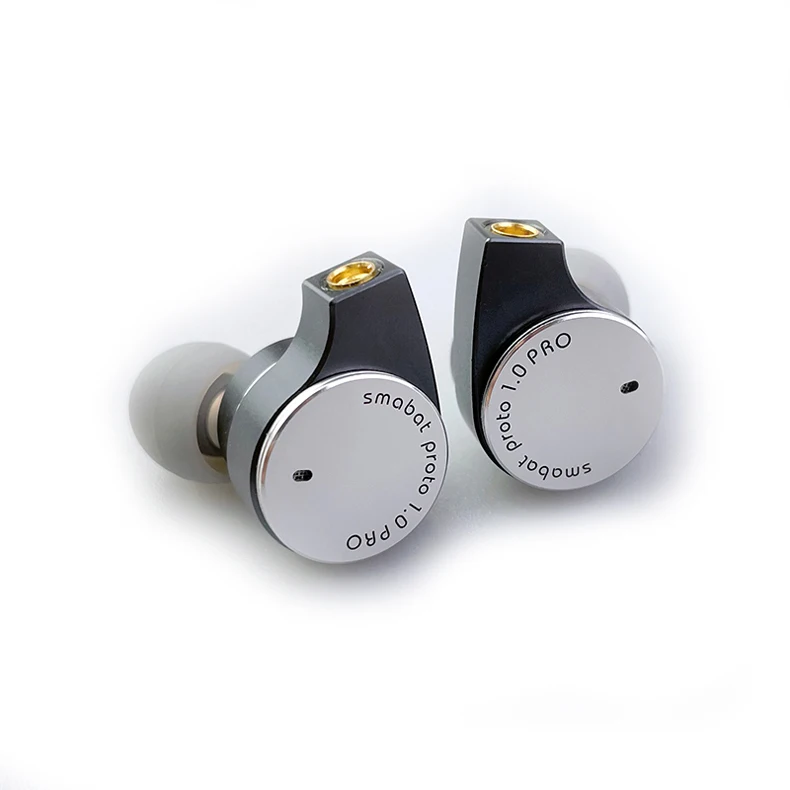

Smabat Proto 1.0 DIY Earphone

After the M2s Pro DIY earbud model, Smabat came with an advanced version in the IEM form. Smabat Proto 1.0 is specifically designed for earphone developers and enthusiasts.

Smabat Proto 1.0

  1. Control treble damping
  2. Bass control damping
  3. Earphone main body
  4. Drive unit module
  5. Acoustic sealing ring
  6. Rear cavity breathable cover
Classic A/B cavity acoustic structure

Smabat Proto 1.0 2

A/B cavity is the most commonly used acoustic structure of in-ear earphones. 99% of in-ear headphones use this acoustic method for tuning. It uses the same acoustics principle.

Fast and professional audiophile tuning

Smabat Proto 1.0 3

Smabat designed a more convenient damper, which can realize fast and easy earphone sound adjustment. Suitable for earphone enthusiasts and developers.

Modular Upgrade·Drive Unit

Smabat Proto 1.0 4

Proto 1.0 uses a more convenient and fast modular design unit. No tools are needed to replace the unit module, upgrade the sound quality. At the same time, more adjustments are made to the sound details through precise acoustic damping. It can make the sound of the headset more in line with your personal listening style.

SMABAT technology acoustic kit

Smabat Proto 1.0 5

Users will have a full set of professional and rich Proto 1.0 damping accessories, including a 10 mm Drive unit module.

Professional sound quality experience

Smabat Proto 1.0 6

  • The default sound is warmer, and the human voice is not sharp and comfortable
  • The bass of the yellow damping configuration is enough to dive the power is average
  • The mid-frequency is excessively smooth and natural
  • Rich and clear high-frequency details.


  • Impedance: 16Ω
  • Earphone sensitivity: 110dB/mW
  • Frequency range: 10-22000Hz
  • Total harmonic distortion: <0.2%@ 1KHz
  • Plug interface: 3.5mm
  • Cable length: 1.2m±2cm
  • Color: gray
  • Whether to bring a microphone: No
  • Headphone plug type: L-shaped
  • Headphone Category: HIFI
  • Headphone jack: mmcx jack
  • Whether with cable: Yes, with ,mmcx cable
  • Drive unit: 10mm Titanium Diaphragm drive

Price: 88$
