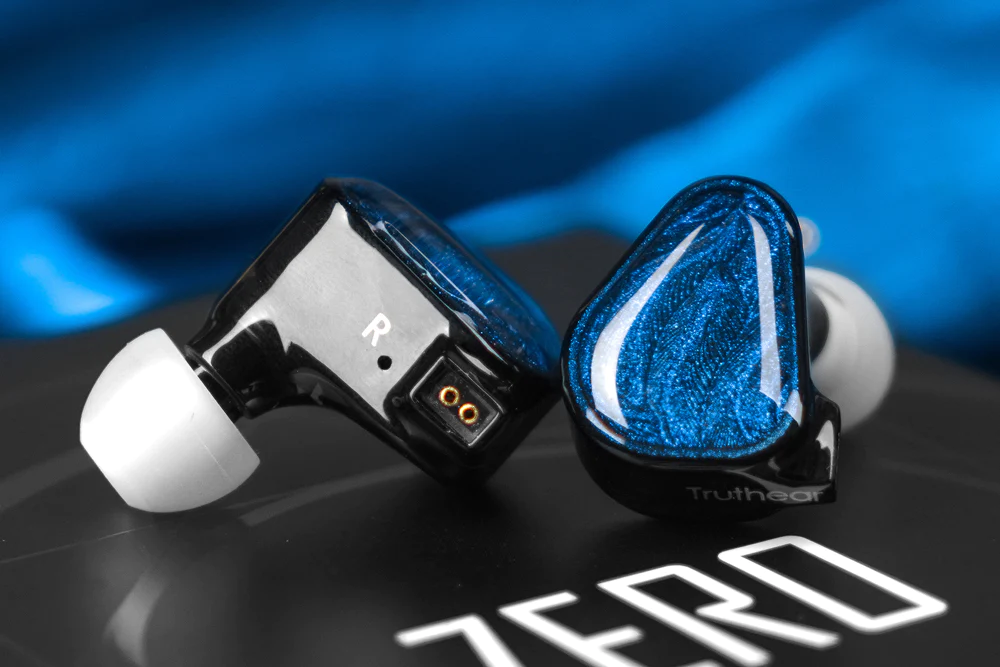

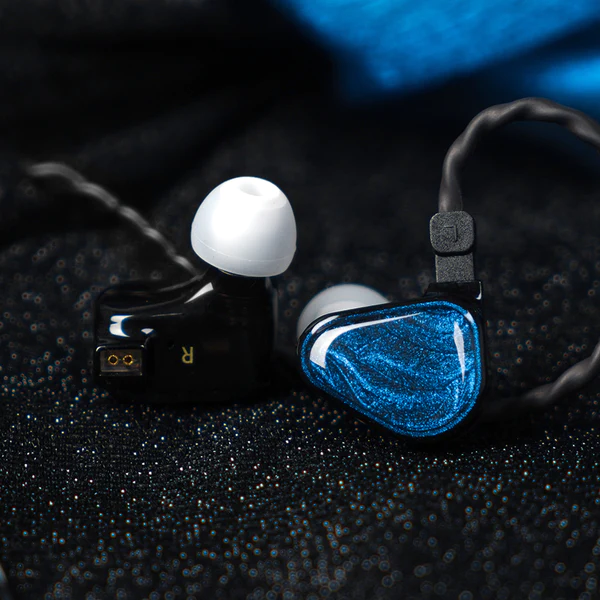

Truthear is a new brand and well-known recently days, and as a fresh brand, they announce their initial collab IEM with Crinacle, the ZERO.
ZERO houses the double dynamic driver configuration, with a diameter of 10mm and another diameter of 7.8mm. It has an internal magnetic circuit structure co-worked with a flexible polyurethane suspension composite LCP liquid crystal dome diaphragm.
In terms of the dual drivers, The 7.8mm dynamic driver responsible for mid-high frequency uses an ultra-fine CCAW voice coil, which pursues the lightweight of the vibration system, so that the sensitivity of high-frequency is effectively improved, and the response is smoother. On the contrary, the 10mm dynamic driver responsible for low frequency utilizes a special weighted voice coil, which reduces the natural resonant frequency for accurate frequency division.
The cavity adopts a sandwich structure (front cavity, decorative panel, and glue-dropping capping). ZERO is capped by a glue-dropping process, and it is solidified and shaped by ultraviolet and processed by hand-polishing and varnish spraying, which ensure effectively reinforcing the firmness processed by glue-dropping capping. In addition.
- Configuration: 10mm+7.8mm Dynamic Driver
- Diaphragm material: PU + LCP composite diaphragm
- THD: THD@1KHz≤1%
- Sensitivity: 117.5dB/Vrms (@1KHz)
- Impedance: 10Ω±15% (@1kHz)

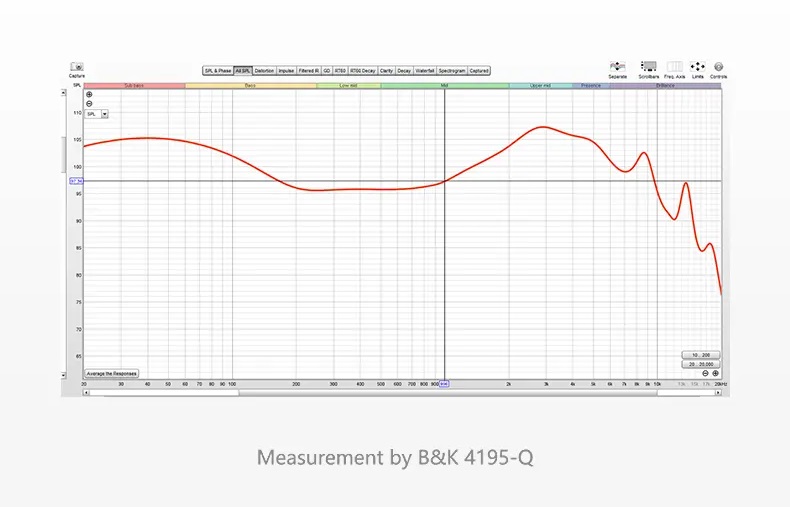

- Frequency Response: 20Hz-39500Hz (IEC61094Free Field)
- Cable: Oxygen-free silver-plated
