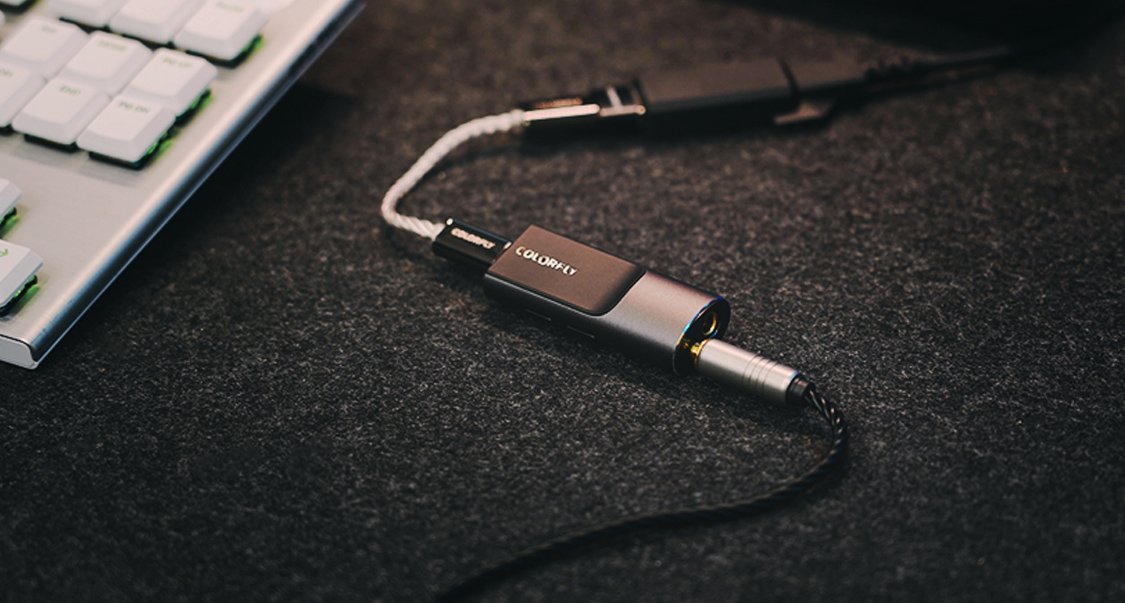

Colorfly CDA M1 3

Colorfly CDA M1 USB Type-C DAC/AMP

Colorfly CDA M1 offers their self-developed ( partnered with ESS Sabre Technologies) α DAC chip that provides decode up to 32-Bit/768kHz PCM and native DSD512 decoding. The CDA M1 uses the same U8 architecture that Colorfly utilizes in its HiFi music players. It has both single-ended as well as balanced headphone outputs, 3.5mm+4.4mm. Colorfly has designed it with an independent RT6863 op-amp for powerful output. The balanced 4.4mm headphone port provides up to 200mW@32Ω and a single-ended 3.5mm port  100mW of clean output power rating.

Colorfly CDA M1

Colorfly CDA M1 is not just any regular USB DAC/AMP in the market. It features a second-generation Jitterkill with a 100MHz active crystal oscillator clock for low distortion and high performance in the output. CDA M1 can be used with an Android smartphone or an iPhone with lightning connector, or Windows/Mac PC.

Colorfly CDA M1 6



Colorfly has equipped the CDA M1 with two buttons that allow the users to choose between the high and low gain modes.

Colorfly CDA M1 5

Features

  • Colorfly α DAC.
  • Supports 32-Bit/768kHz PCM signal decoding.
  • Native DSD512 decoding.
  • Colorfly U8 HiFi music player architecture.
  • Ultra-low jitter 100MHz active crystal oscillator.
  • RT6863 high-performance independent Op-AMP.
  • JitterKill 2 independent clock architecture.
  • Dual Headphone output(3.5mm+4.4mm).
  • Supports both High & Low impedance modes.

Colorfly CDA M1 4

Specs

  • USB connector: Type-C.
  • Bitrate support: PCM 32-bit/768kHz, DSD512 natively, DSD256 DoP.
  • SNR: 120dB.
  • THD+N: -100dB@600Ω, -98dB@32Ω.
  • Output level: 2Vrms(3.5mm), 4Vrms(4.4m).
  • Output power: 100mW(3.5mm), 200mW(4.4mm).
  • Frequency response range: 20Hz-20kHz.
  • DNR: 120dB.

Price: 79.99$
