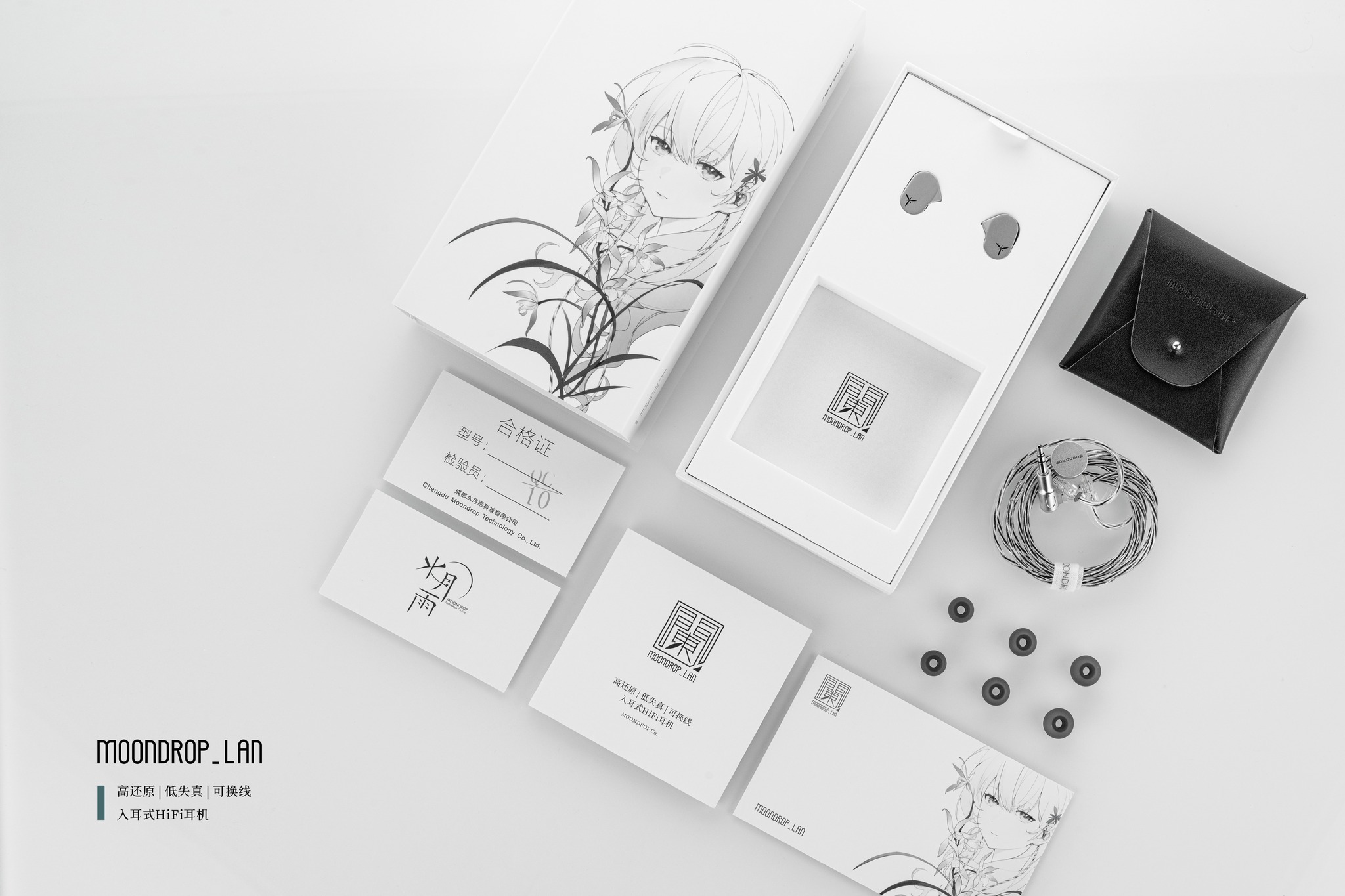

Moondrop LAN Unboxing & FR Graph

The new budget model LAN from Moondrop is targeting a new benchmark of entry-level HiFi earphones. As a brand-new product in MOONDROP’s traditional line-up, LAN integrates the experienced acoustic technology of MOONDROP in dynamic driver in-ear headphones, and its performance far exceeds that of other competitors at the same price level.


A new generation of large-size beryllium-plated dome composite diaphragm, high-efficiency internal magnetic driver structure with a brass internal acoustic cavity, and metal stainless steel shell made by MIM powder metallurgy process, all works are adapted to this advanced budget-oriented product.


LAN can be the benchmark sound quality, owning to the newly designed composite diaphragm with a large-size beryllium-plated dome and a flexible suspension. The large-size spherical dome coated with beryllium owns the low split vibration which covers the higher frequency range, and combines with the more linear long-stroke strain of the flexible suspension, to constitute the physical foundation of low nonlinear distortion and wide frequency band.

MOONDROP LAN 4 e1676457002568

LAN not only produces an excellent frequency response curve in line with the VDSF Target Response but also provides the ultra-low non-distortion below 0.05%. Excellent acoustic performance not only brings a natural, open, and transparent hearing experience but also offers a neutral timbre and a regular clear soundstage. It fully meets the critical needs of high-end music lovers, gaming players, and professionals whether for music, gaming, or professional monitoring.

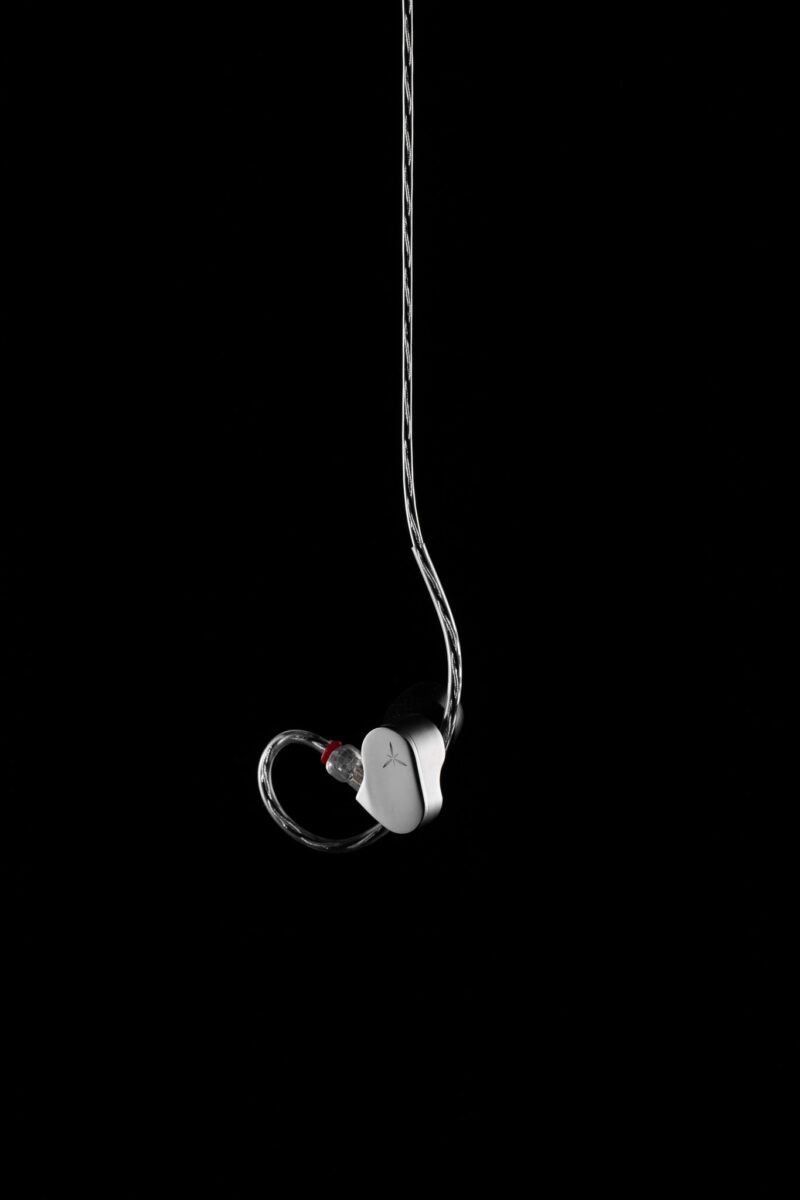

MOONDROP LAN 4 1 e1676457036839

In terms of its exterior design, the compact shell adopts the MIM powder metallurgy process, and the solid stainless steel housing is manufactured by high-temperature sintering through mold forming. This technology was first used in this universal product, promising LAN a high-end texture and superior quality.



  • Model: LAN IEM with a replaceable cable
  • Shell: MIM steel shell
  • Driver: 10mm dual-cavity high-performance dynamic driver
  • Coil: 0.03mm ultra-thin CCAW
  • Diaphragm: Berylium-plated dome composite diaphragm
  • Magnetic circuit: N52 magnetic
  • Acoustic Filter: Patented anti-blocking (anti-imbalanced) filter
  • Plug: 3.5mm single-ended 0.78mm-2pin
  • Frequency Response: 15Hz -37kHz
  • Effective Frequency Response: 20Hz-20kHz (IEC60318-4, 3dB)
  • Impedance: 320hm±15% (@1kHz)
  • Sensitivity: 120dB/Vrms(@1kHz)
  • THD: THD≤0.5% (@1kHz, 94dB)

Price: $39.99
