Topping DX5 All-in-One

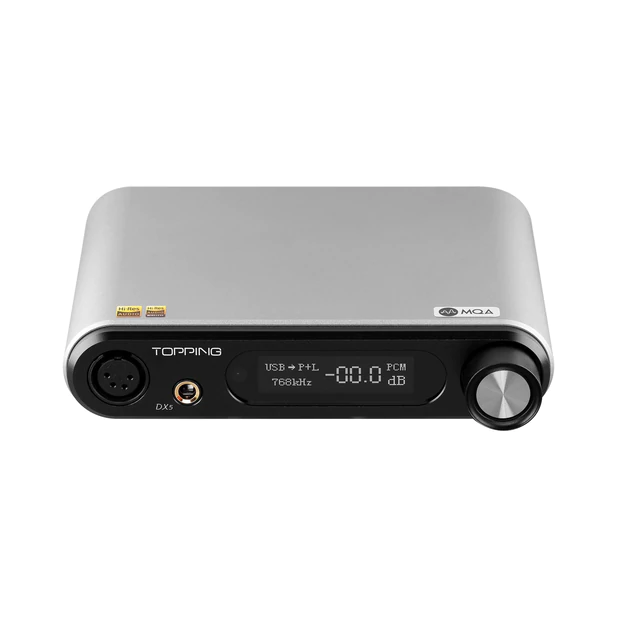

Topping has released Red Dot Design and Golden Pin Design awarded all-in-one DAC/AMP, the all-new Topping DX5. DX5 comes with dual ES9068AS DAC chips. It offers the users a variety of connection options and also packs MQA (Master-Quality Authenticated) decoding. The latest DX5 can act as a single device that handles decoding of High-res signals and at the same time provides amplification.

Topping DX5 All in One 4

Topping DX5 is designed with an NFCA headphone amplification circuitry. With this specially-designed NFCA amplification circuitry, the DX5 provides you with enough juice to drive even demanding headphones with ease. Even at 300Ω high-impedance level, the DX5 provides up to 250mW of clean power.

Topping DX5 All in One 6

Master-Quality Authenticated(MQA) decoding is fully supported on the Topping DX5. It not only supports MQA over the USB Connection but also with Digital Coaxial and Optical Inputs supports full MQA decoding. So be prepared to experience full MQA decoding with the Topping DX5.

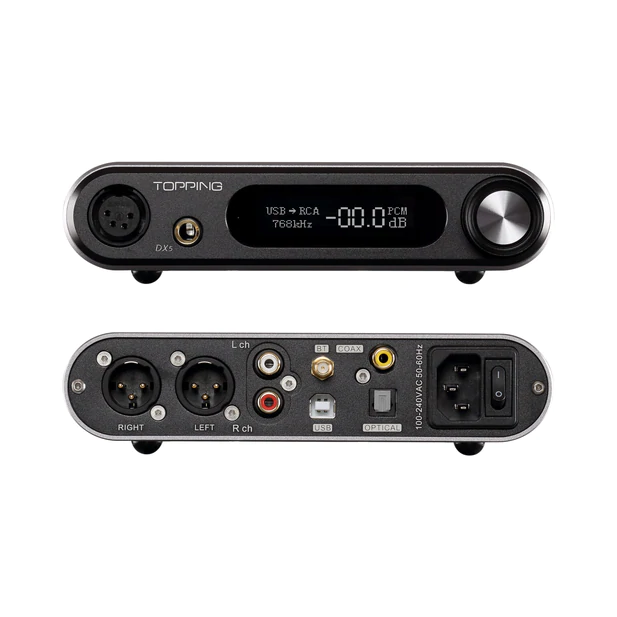

The latest DX5 is a hub with multiple connectivity options. For input, one can use USB, Coaxial, Optical, or even Bluetooth. With the Bluetooth connections, DX5 supports high-resolution signal transmission with LDAC codec support. As for output, we have the 6.35mm single-ended headphone jack and 4-pin XLR balanced headphone jack.

Topping DX5 All in One 2

Topping DX5 supports DAC-only mode providing line-out to a dedicated amp in your chain, or you can use its headphone amplifier too, or you can simply use both. You can also use it to give line-out at the same time from both RCA and XLR ports. All these modes are easily accessible and can also be switched using the remote control.


  • Premium Dual DAC Chipset housing dual ES9068AS DAC Chips.
  • 2nd Gen XMOS XU216 USB Processor.
  • Supports High-Res audio signal decoding(32-Bit/768kHz PCM).
  • Native DSD512 decoding.
  • Built-in NFCA Headphone Amplification Circuit.
  • Supports Hi-Res Bluetooth input(LDAC), Digital Inputs(Coax+Optical).
  • Dual gain levels.
  • Multiple output modes(Headphone AMP, Headphone AMP+Line-Out, DAC, & Pre-AMP.

Technical Specs

Decoding Parameters

  • USB: 32-Bit/768kHz PCM, DSD512 Native, DSD256(DoP), Full MQA decoding.
  • Opt/Coax: 24-Bit/192kHz PCM, DSD64(DoP), Full MQA decoding.

RCA Parameters

  • THD+N(A-Weighted): <0.00010%.
  • THD@20Hz-20kHz: <0.0005%.
  • SNR@1kHz: 125dB.
  • Dynamic Range: 125dB.
  • Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).
  • Output Level: 2.1Vrms@0dBFS.
  • Noise@A-weighted: <1.5uVrms.
  • Channel Cross talk: -130dB.
  • Channel Balance: 0.3dB.
  • Output Impedance: 50Ω.

Topping DX5 All in One 5

XLR Parameters

  • THD+N(A-Weighted): <0.0009%.
  • THD@20Hz-20kHz: <0.0002%.
  • SNR@1kHz: 128dB.
  • Dynamic Range: 128dB.
  • Frequency Response: 20Hz-20kHz(±0.1dB), 20Hz-40kHz(±0.3dB).
  • Output Level: 4.2Vrms@0dBFS.
  • Noise@A-weighted: <2.0uVrms.
  • Channel Cross talk: -140dB.
  • Channel Balance: 0.3dB.
  • Output Impedance: 50Ω.

Output Parameters

  • THD+N(A-Weighted): <0.00010%@32Ω.
  • SNR: 125dB.
  • DNR: 125dB.
  • Output Level: 6Vpp(Low gain), 25Vpp(High gain).
  • Noise@A-weighted: <1.7uVrms(low gain), <5.5uVrms(High-gain).
  • Channel Cross talk: -114dB.
  • Output Impedance: <0.1Ω.
  • Output Power: 1800mWx2@32Ω, 1000mWx2@64Ω, 250mWx2@300Ω.
  • Load Impedance: >8Ω.

Price: 449$
