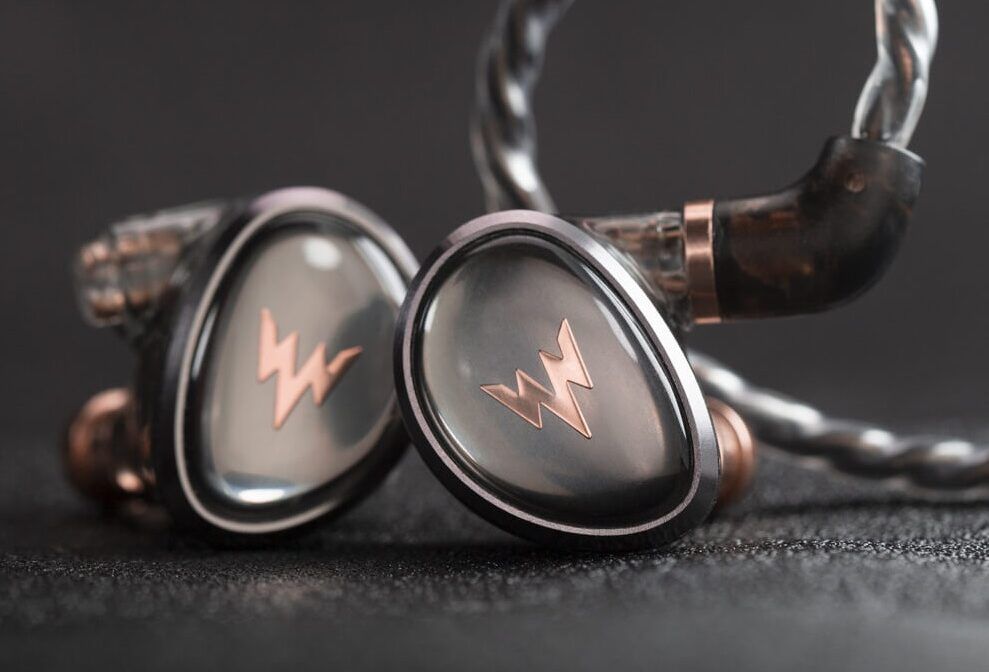

The color scheme of Whizzer Kylin HE01B is inspired by a classic combination of glossy black and red-gold. During the color matching process, Whizzer went through several physical color mixing processes before finally using the anodizing process to create the unique W155 red-gold color, which is used as the HE01 series signature color.

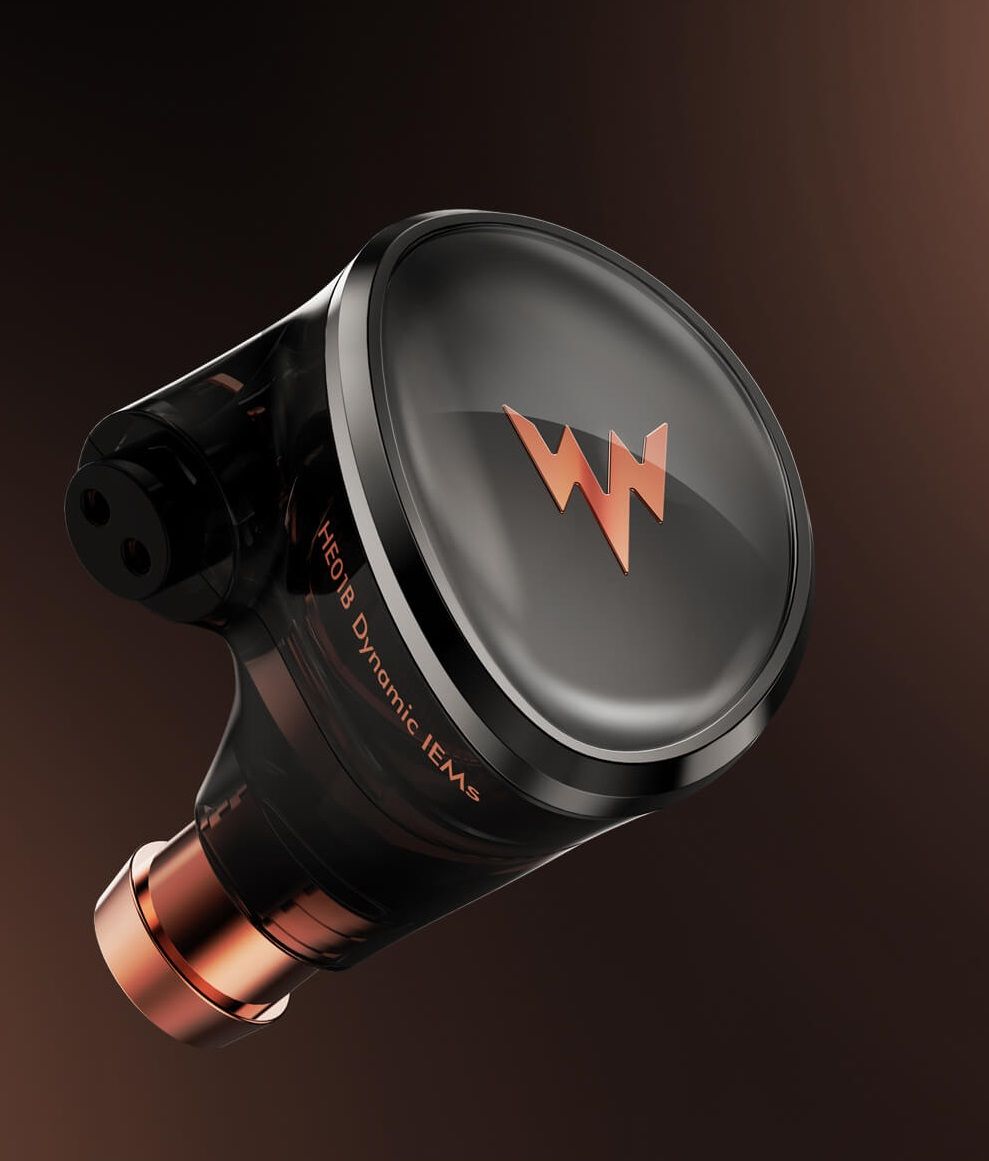

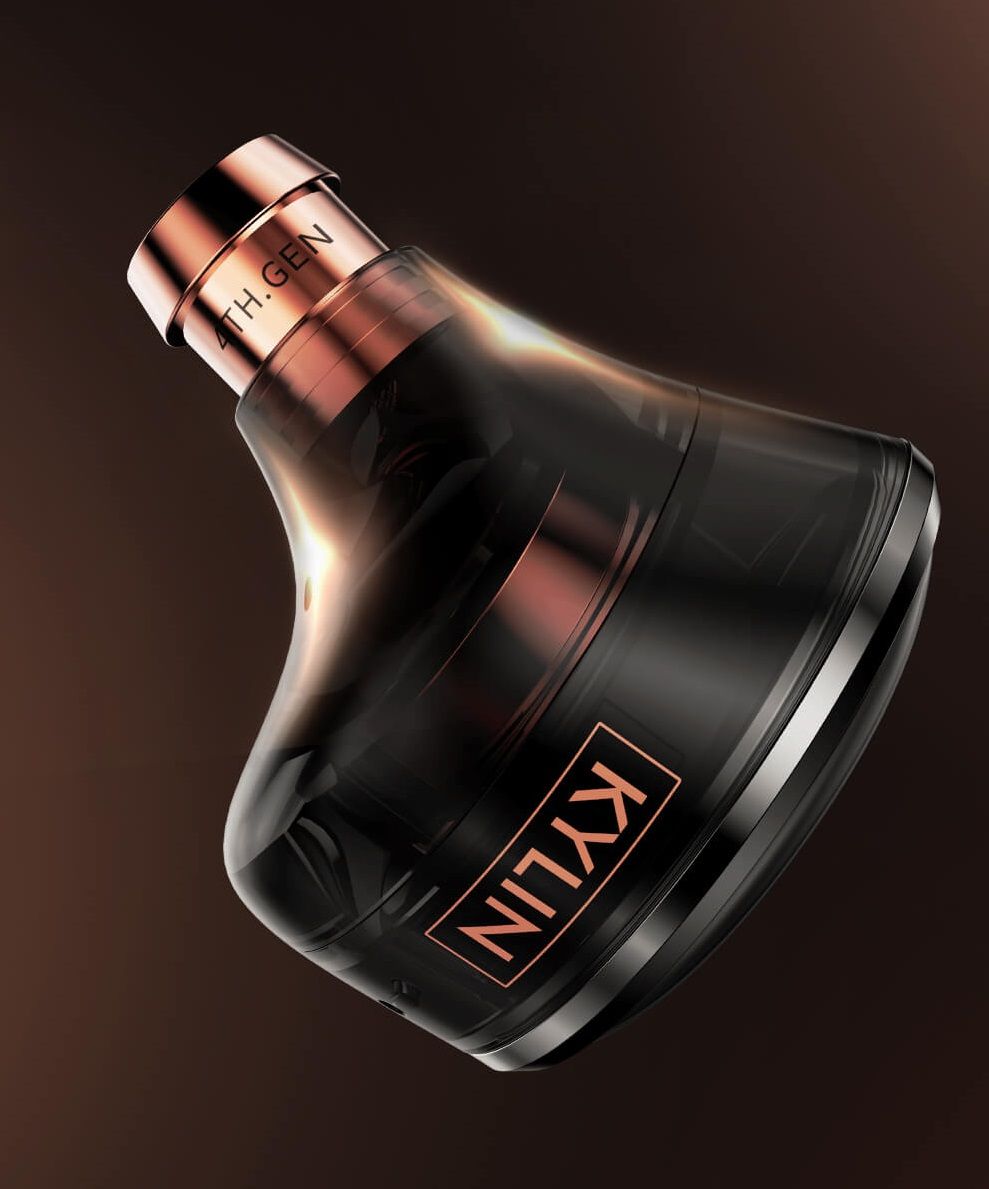

In order to pursue the texture, Whizzer adopted a hand-dripping production process that organically combines high-transmission PC, CNC aluminum, and photochemical resin to achieve stable mass production. Each HE01 series model is made with more than ten components, through the process of casting, CNC, oxidation, drip glue and assembly, and more than 72 hours of work.
HE01B uses Whizzer 4th. Gen BRIGHT series custom dynamic unit, double rear cavity design, the unit size reaches 10.2mm, making the full-range response more smooth and natural. PU + PEEK composite material diaphragm, with about 1.2 Tesla large magnetic flux magnetic circuit design and 18 Ohm low impedance.
HE01 series are equipped with HDSS acoustic filter module. Using patented acoustic technology, it can significantly improve the sense of sound density and transparency, creating a clear and mellow listening atmosphere. With the HDSS acoustic filter module as the core, our HE01 series is equipped with a sound damping balance system with dual pressure relief holes + integrated alloy conduit + multi-layer special filters for fine adjustment of front and rear cavity pressure & acoustic reverberation.

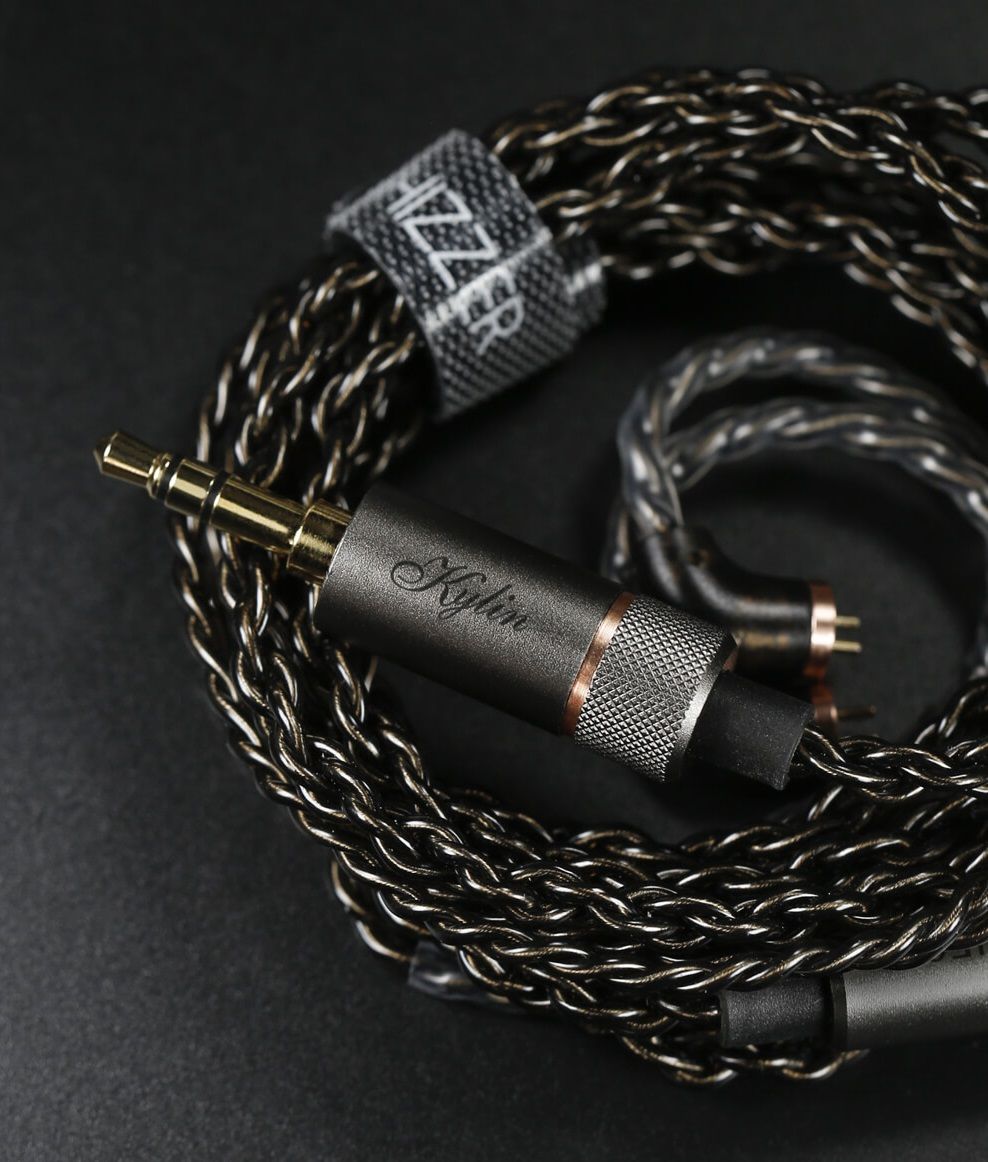

HE01B comes standard with specially customized four-strand 5N oxygen-free copper silver-plated cables, each core is made of 30 5N oxygen-free copper silver-plated cables of 0.05mm wire diameter, mechanically braided by four strands. For the connectors, Whizzer also uses the same anodized CNC metal parts as the shell, carrying the same design aesthetics.
Specs
Driver: Composite diaphragm DD+HDSS
Cables: 5N SPOFC cable
Sensitivity: 112dB SPL/mW
Impedance: 18 Ohm
Frequency Range: 15-40KHZ
Distortion: 1% 101 dB (20upa)
Channel difference: 1.5dB (at1000Hz)
Power Rating: 5mW
Cables length: 120cm
Accessories: Custom SPOFC cables, balanced silicone tips x 6, vocal silicone tips x 3, custom metal storage case, cleaning brush
The Price of Whizzer Kylin HE01B is 79.9 USD between 9.27.2021 – 9.30.2021. After 10.1.2021it will be 84.5 USD. Buyers that purchase the IEM in the first 3 days will get the ET100 ear tips, which cost 12 USD, for free.
