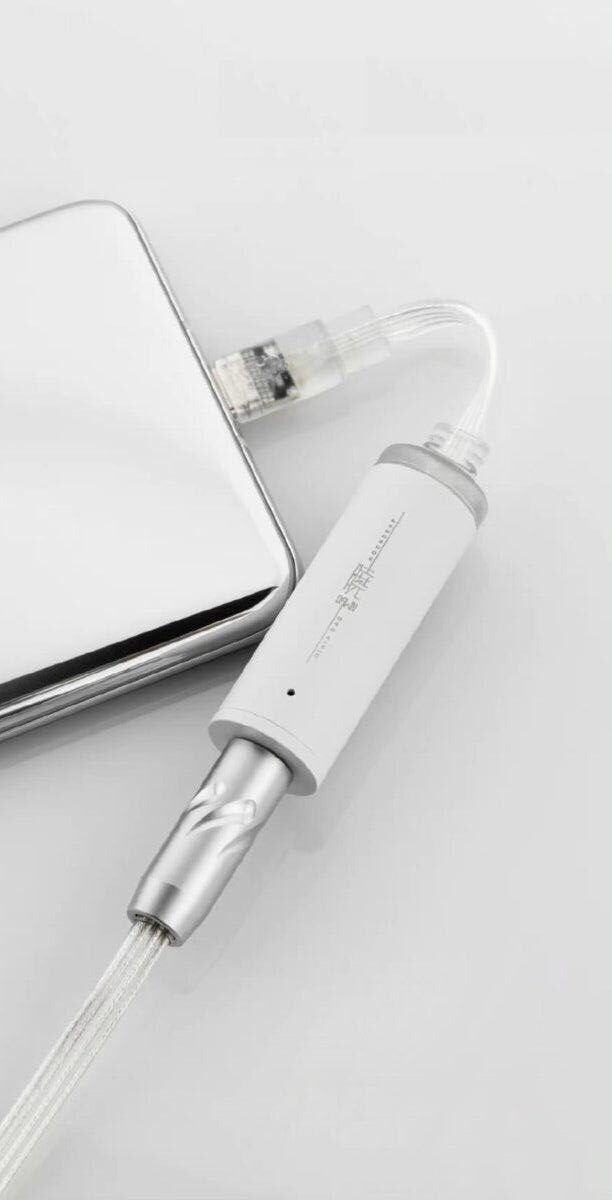

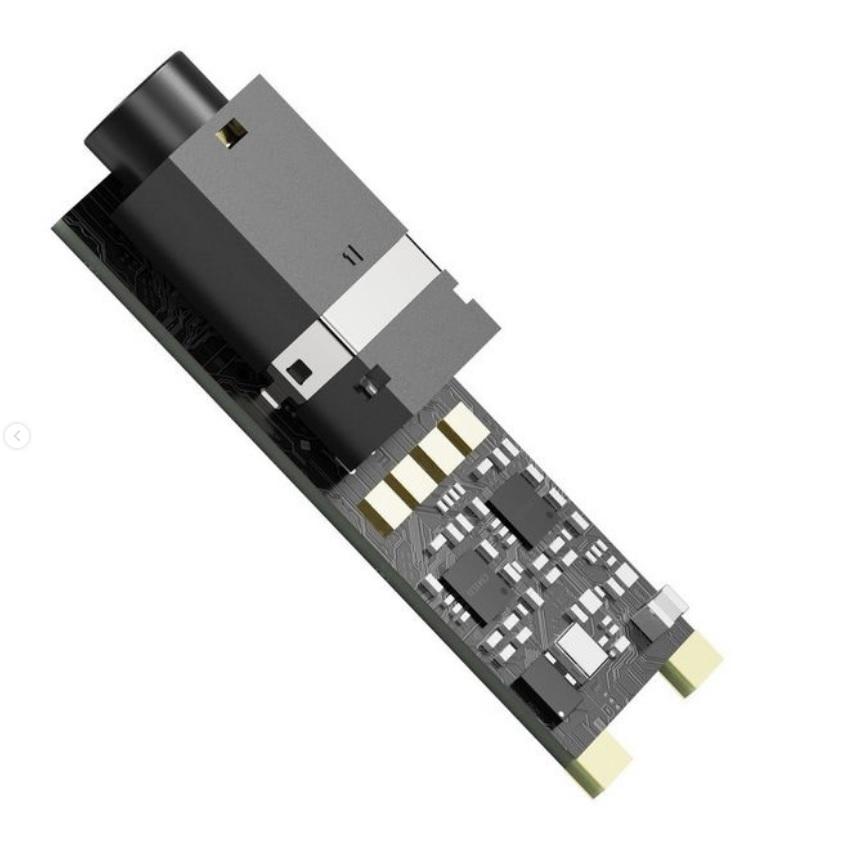

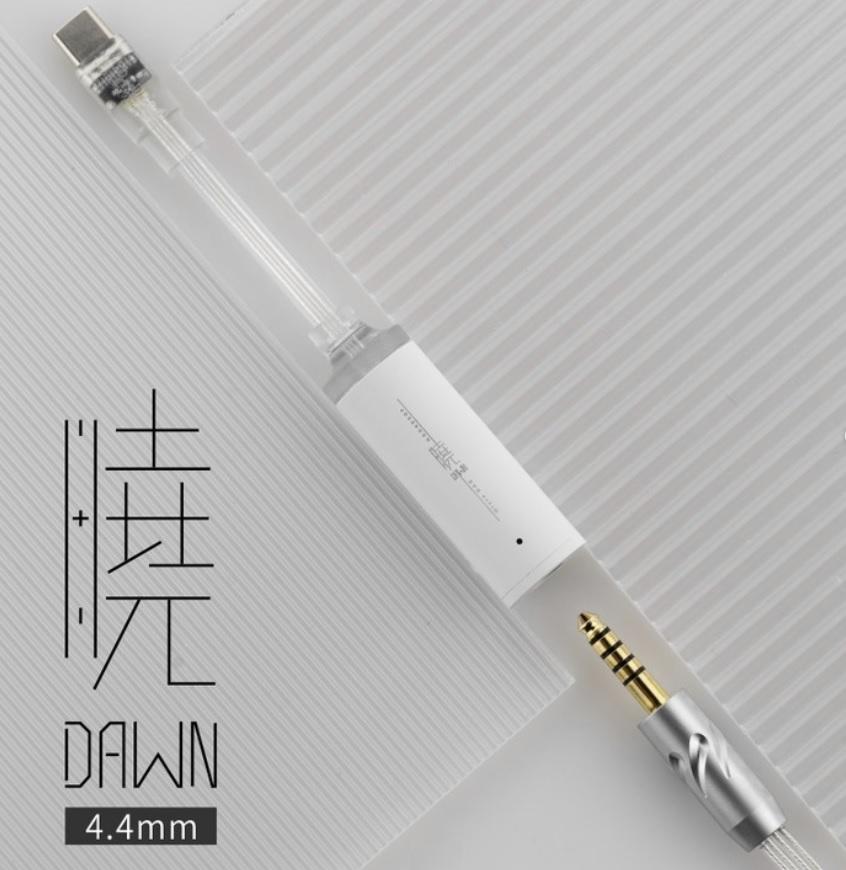

The Moondrop DAWN will be a 4.4mm full balanced mini USB DAC-AMP. It is equipped with dual CS43131 high-performance DAC chips, features a 132dB dynamic range and DSD256, and also supports APP control. It can process the firmware upgrade (via PC), and gain – filter settings (via smartphone).
DAWN is designed with an aluminium alloy CNC shell and combined with white matte paint spraying.
DAWN features the maximum power of 4Vrms and offers up to 230mW undistorted power at 32Ω.
- Weight: 13.7g
- Size: 120mm X 16.4mm
- Earphone Jack: 4.4mm balanced port
- Frequency response range: 7Hz-90kHz(-3dB)
- Port: USB Type-C
- Background noise: 13uV(AES17 20kHz)
- THD+N: 0.00017% (AES17 20kHz, without load)
- SNR: 132dB(AES17 20kHz,A-weight)
- Firmware upgrade: Support (Connect PC)
- Gain: High/Low (Software switching)
- Line- out: 4Vrms(High,2Vrms(Low)
- Maximum output power: 230mW@32Ω, 54mW@300Ω
