Yamaha EPH 100 teardown shell and sound mod 14

Yamaha EPH-100 mod by ARN

I bought the Yamaha EPH-100 about 2 years ago and wanted to mod it after I saw the Yamaha EPH-200 which is simply an mmcx version of the EPH-100.

Yamaha EPH 100 mod by ARN 3 e1654166498975

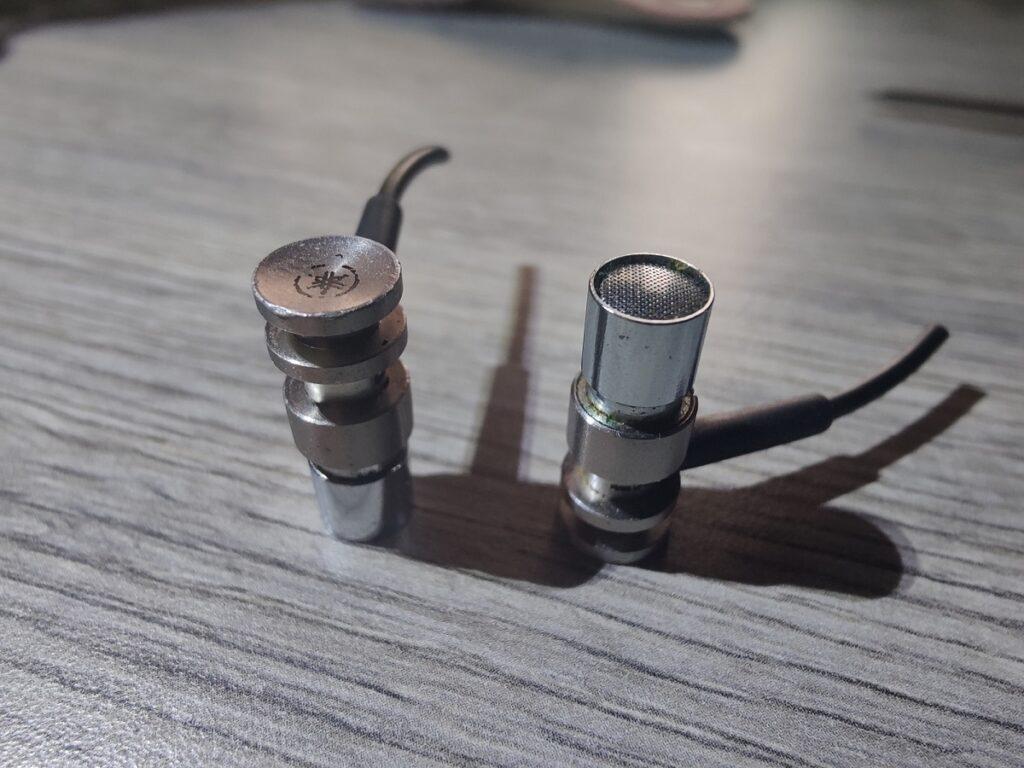

Yamaha EPH-100 with fixed cable
Yamaha EPH 100 mod by ARN e1654166571396
Yamaha EPH-200 with mmcx

The teardown process wasn’t so easy with EPH-100. The 6mm micro dynamic driver is sitting on the edge of the nozzle and it’s deeply attached to the tiny body in an aluminium shell. On the first day, I tried some heating and acetone to loosen the glue and tried politely with no luck. On the second day, I decided on a more radical solution.

Yamaha EPH 100 mod by ARN 35 e1654167124235
Magic tools

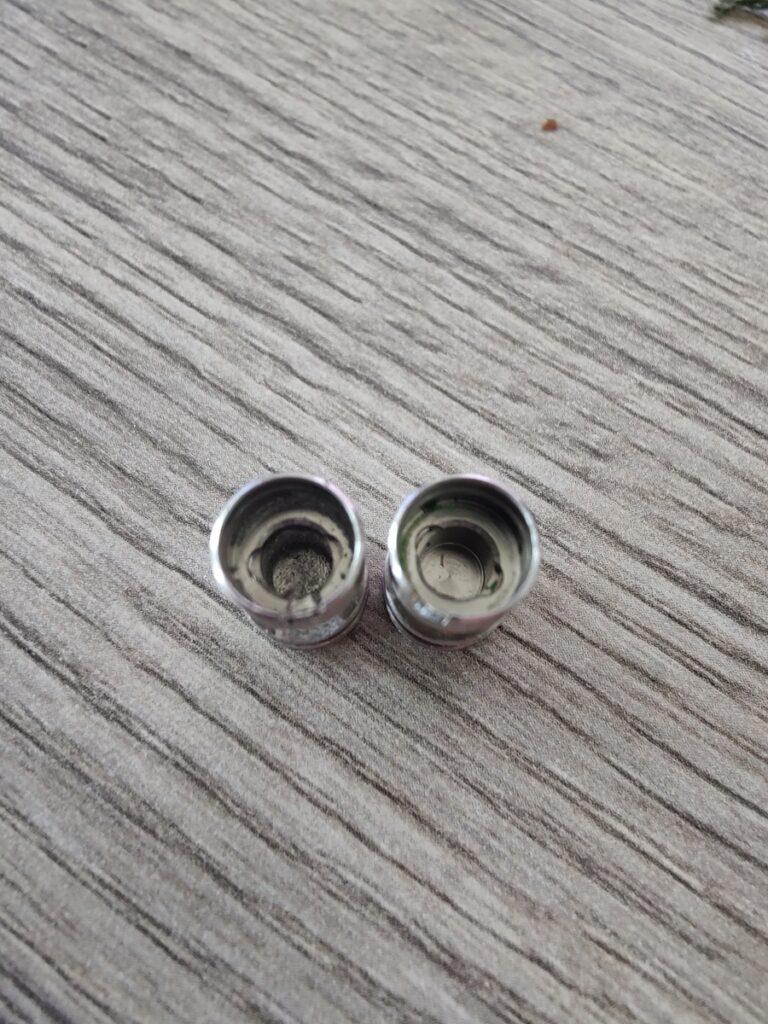

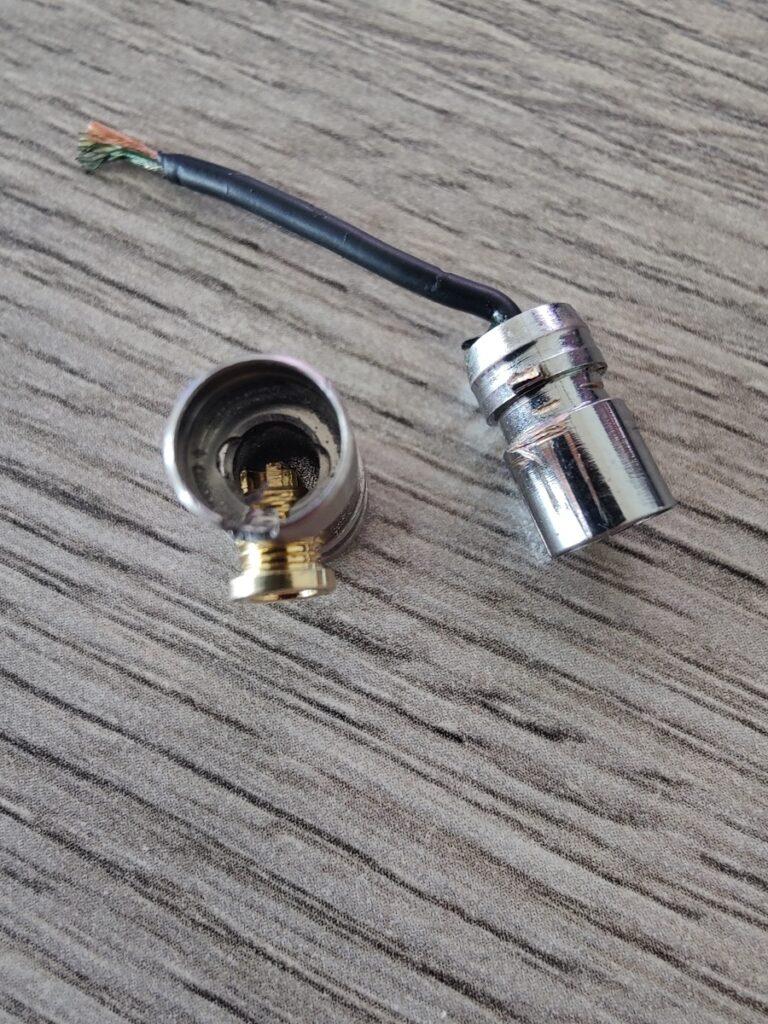

Only with some real force, I was able to teardown EPH-100’s nozzle from the body. Finally 🙂

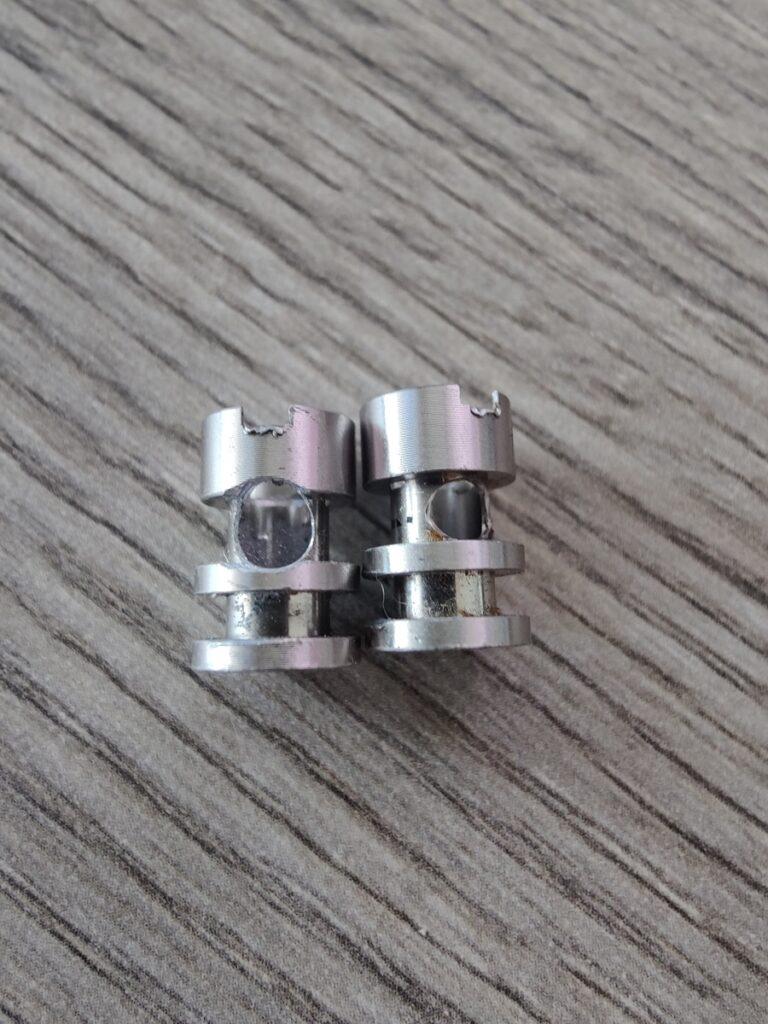

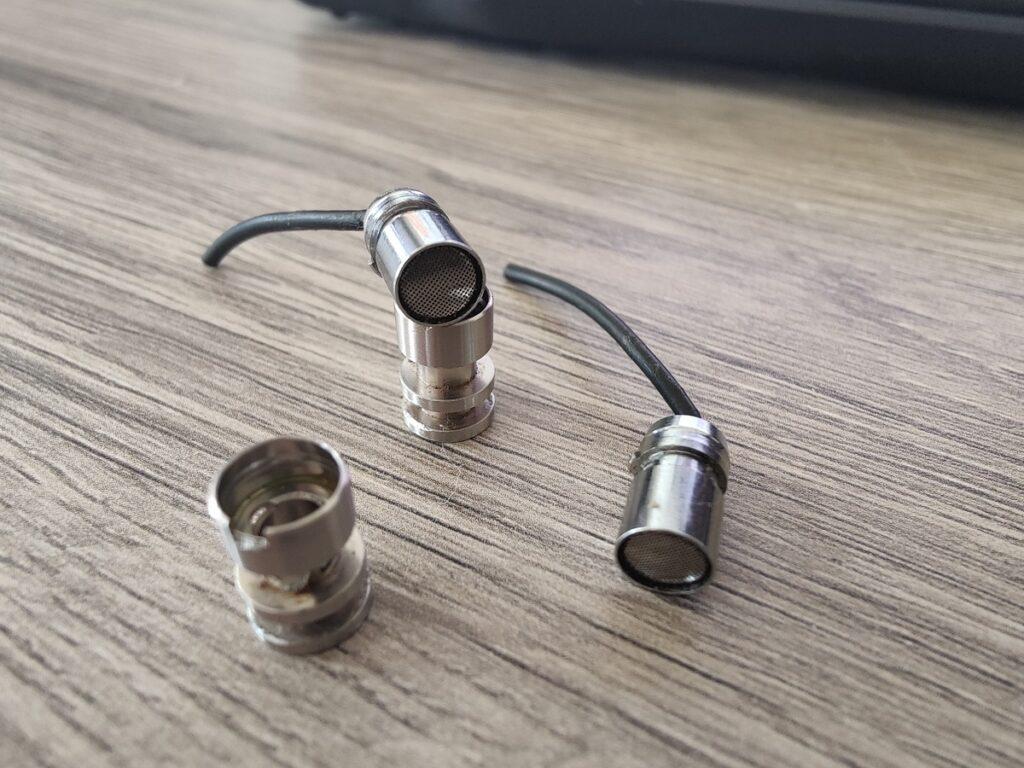

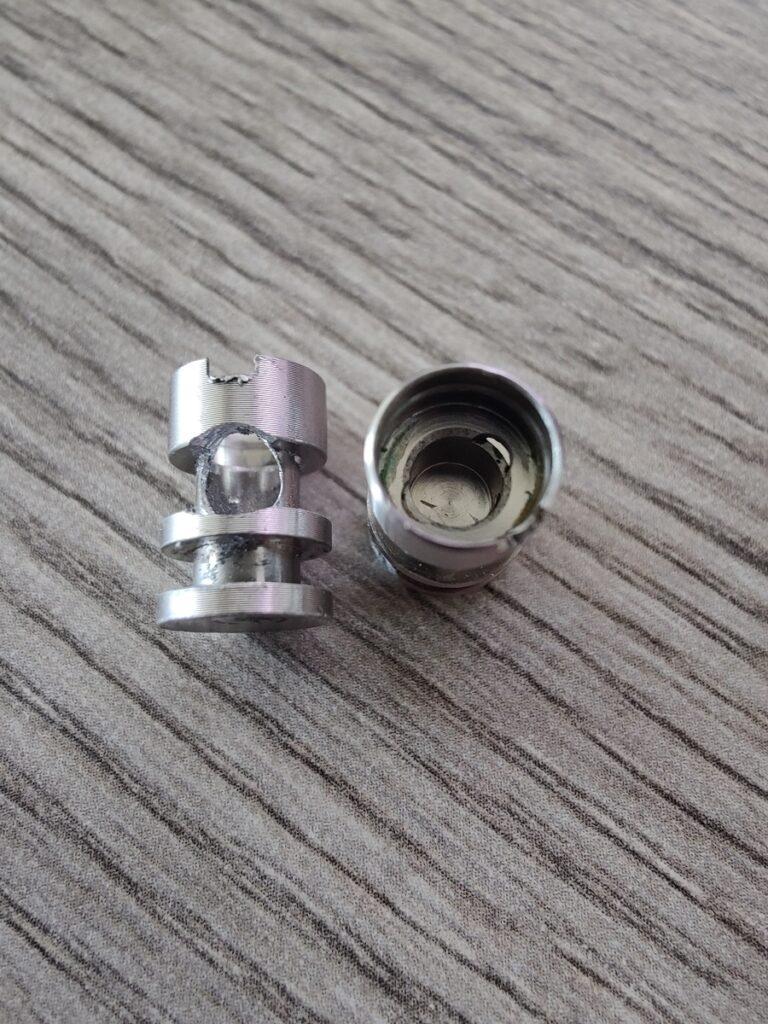

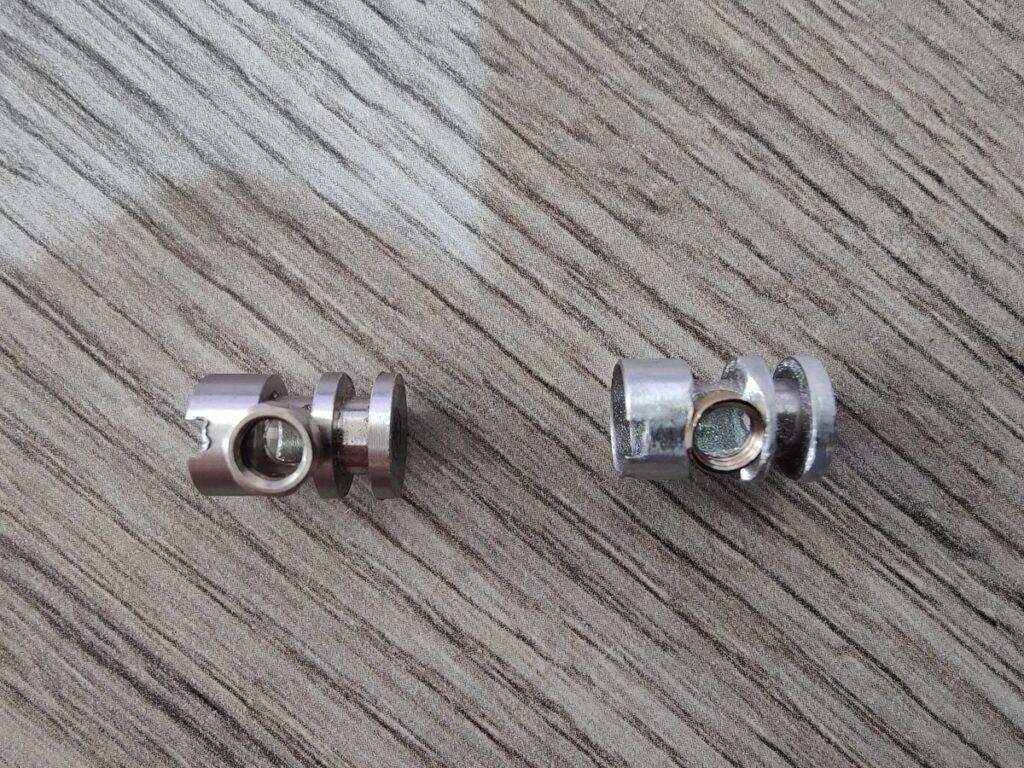

As you can see the nozzle part is actually the IEM itself, the back shell is so tiny, only holds the cable hole, the nozzle and a couple of mm in length backwards.

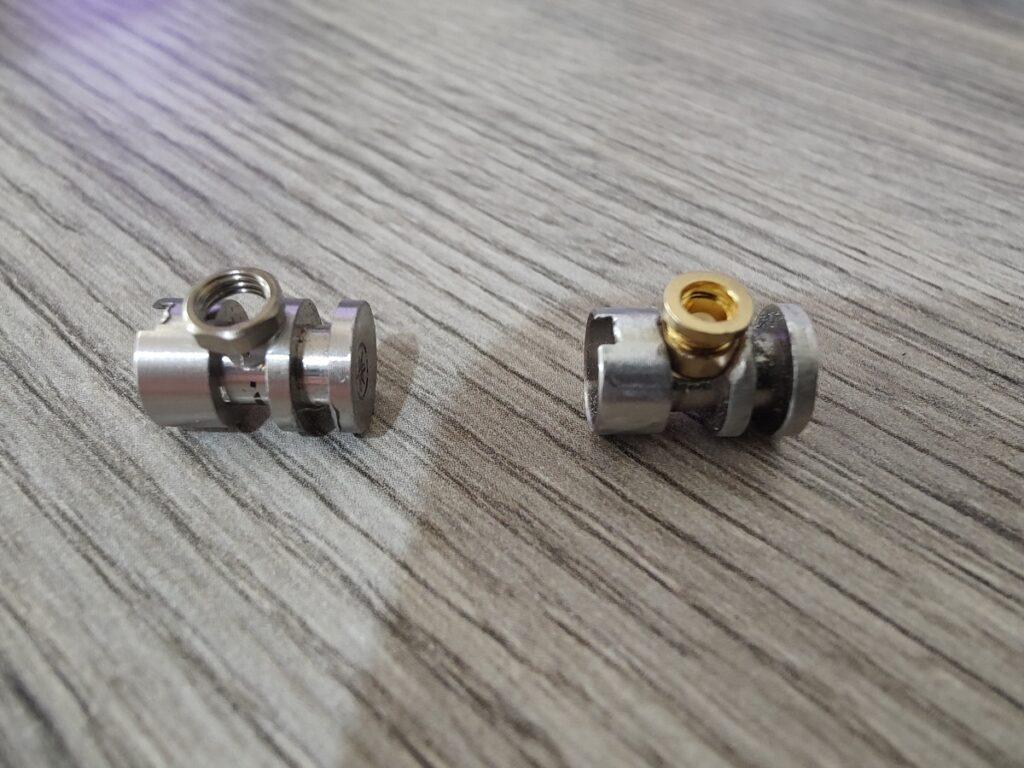

First I tried to make the cable hole a little bigger for the mmcx connector and screw the connector into the body. But there is so little place inside the back shell it wasn’t tight and strong enough. Sure I could use some epoxy on the outside to glue the connector from the outside but I know I wouldn’t like the look. Then I decided to place to the nut of the connector on the outside of the shell for a cleaner look and stronger fit.

Looking good right? But there is a detail which is very important that I realized later. The body where I decided to apply the nut is very thin aluminium. I wanted to carve it more for a perfect fit and look but crushed it while I was working with pliers. What a bummer!

Yamaha EPH 100 mod by ARN 13 e1654169507202

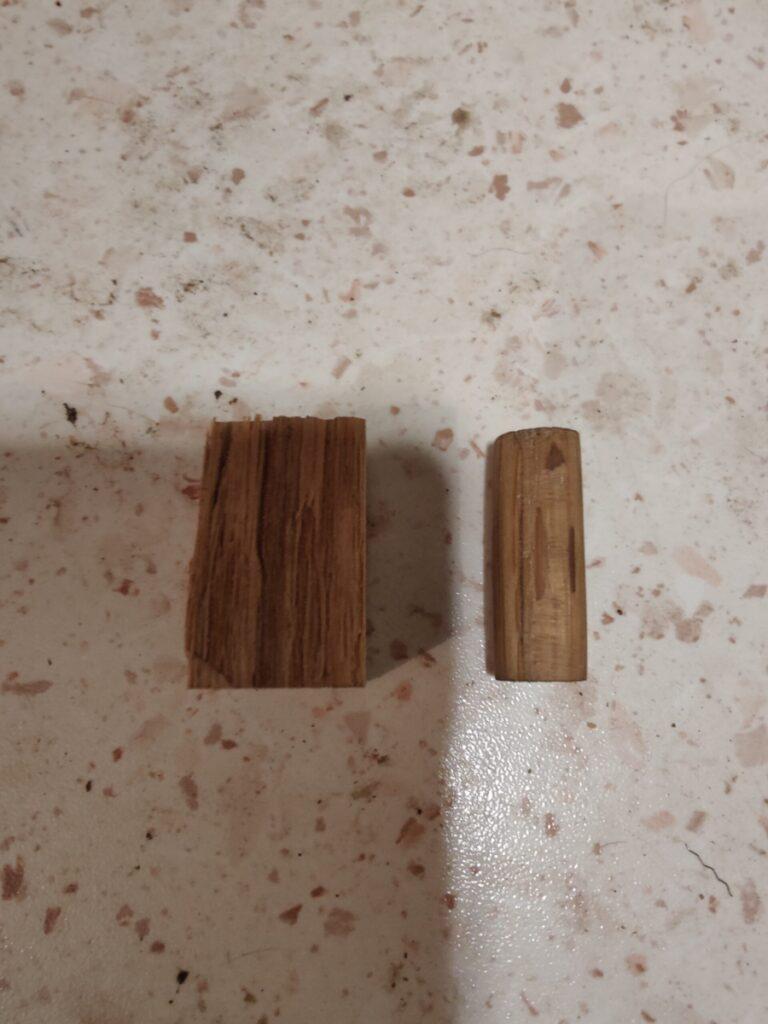

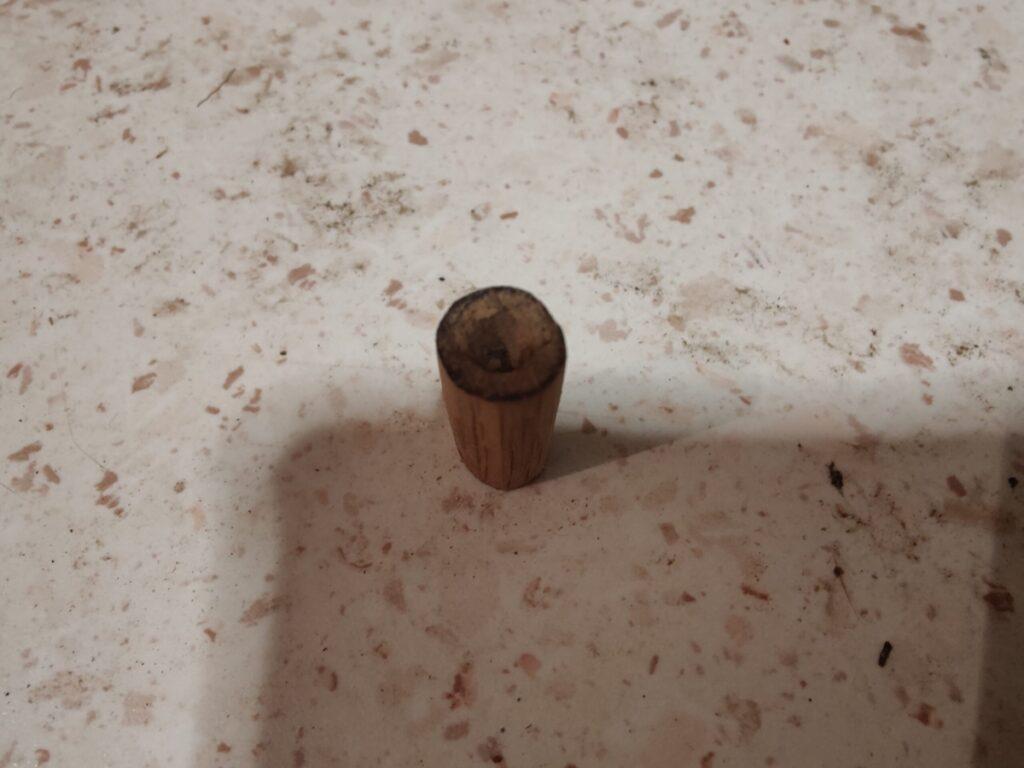

I needed new shells! I don’t have many options in the house, only wood that I can shape or carve with the Dremel tool. I had some samples that I bought before and decided to use mahogany wood for its colour that can match with brass which is used on the nozzle metal, which I realized after sanding it.

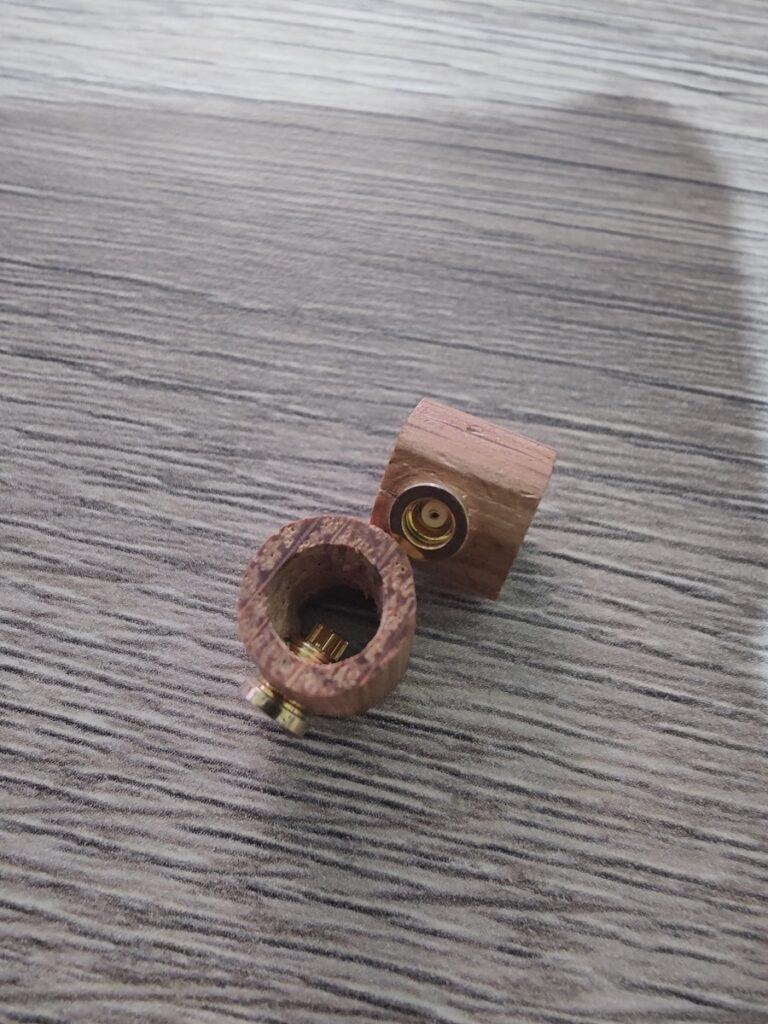

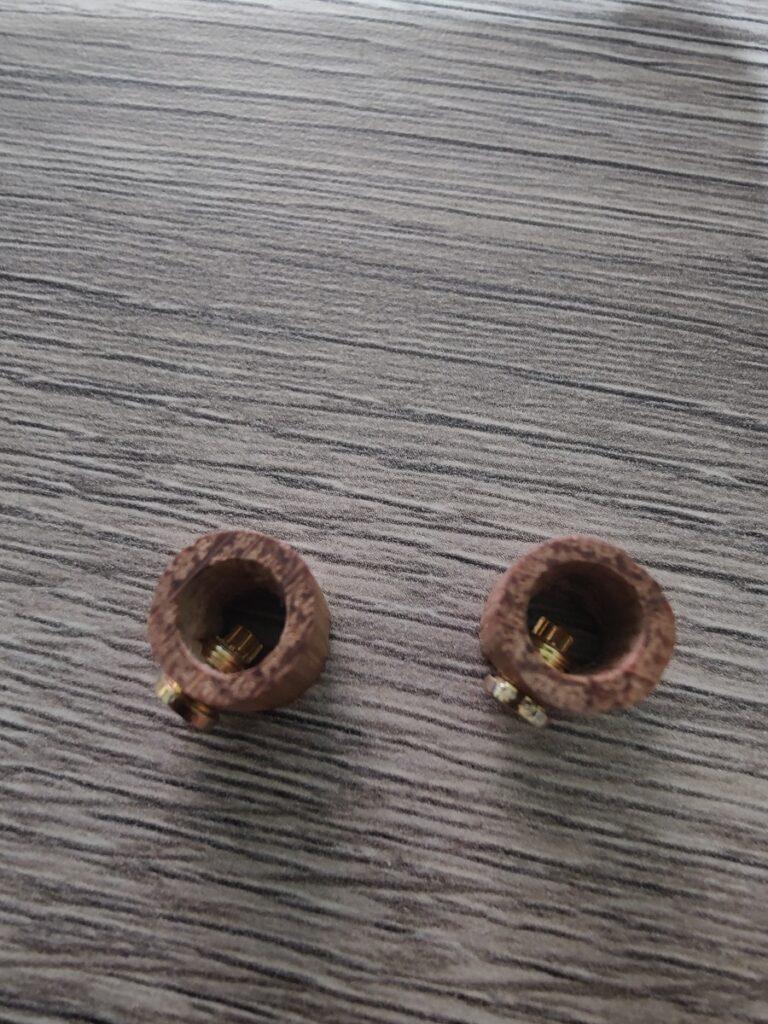

After a couple of hours of sanding and carving, they finally got their shape. I installed the mmcx connectors and continue carving until the nozzle fits tightly.

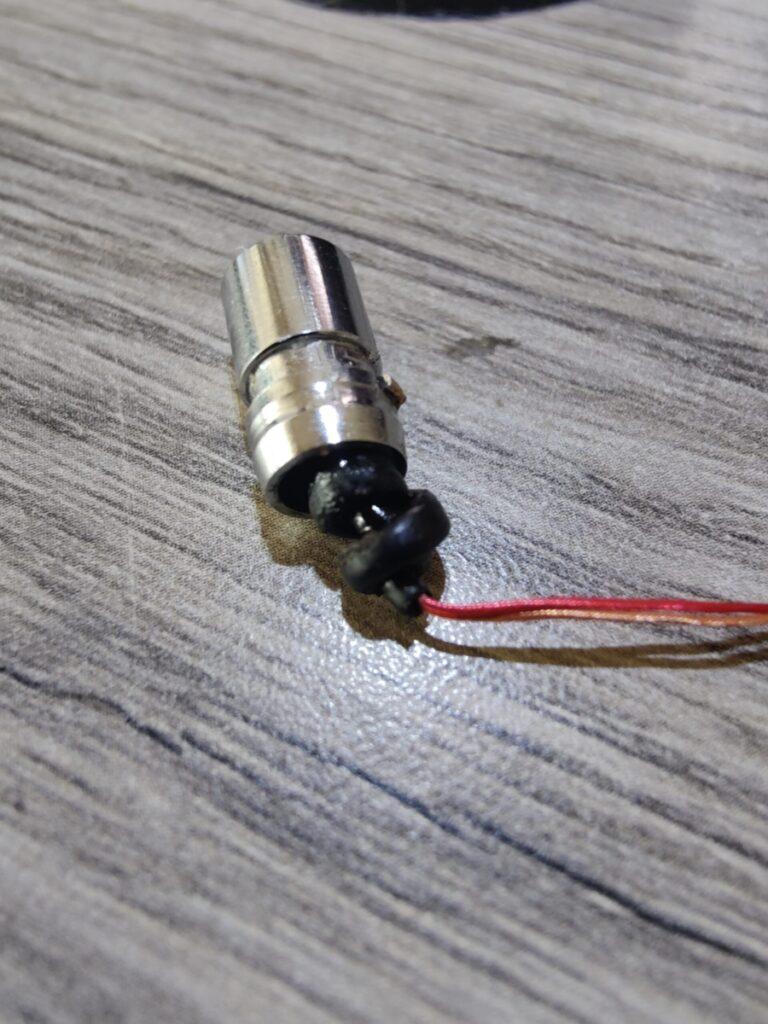

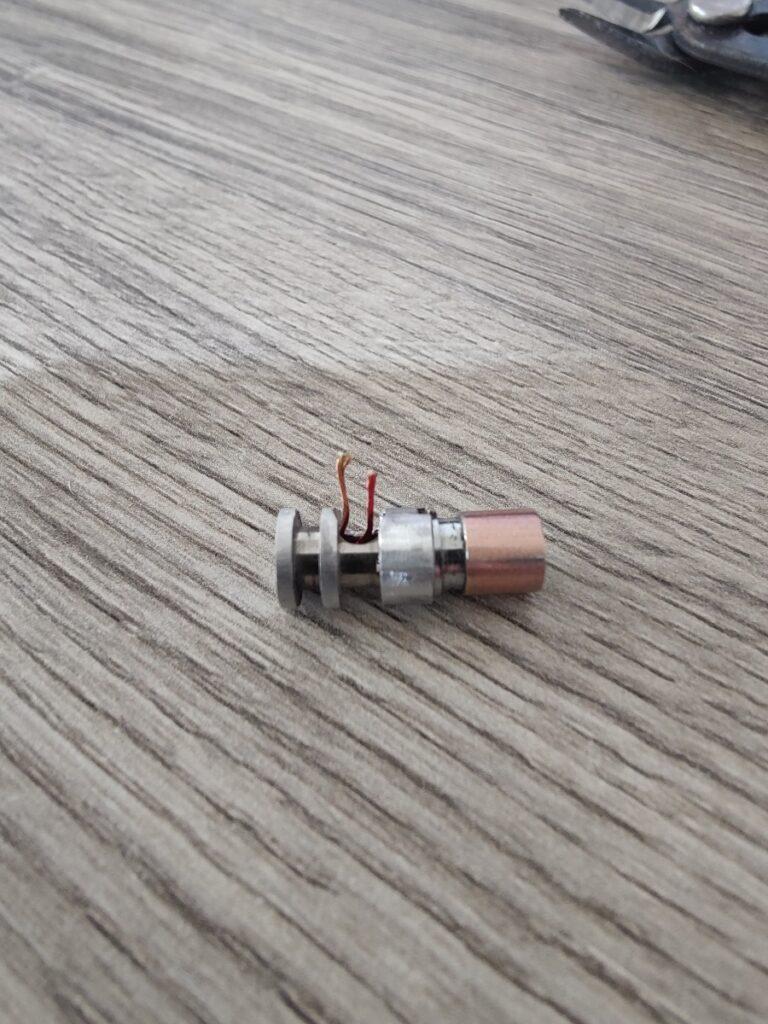

The back of the nozzles was covered/blocked with the cable itself for tuning purposes I guess. I decided to change this in the name of testing wood shell acoustic changes if there will be any. Unblocked the original cover and put a piece of foam inside.

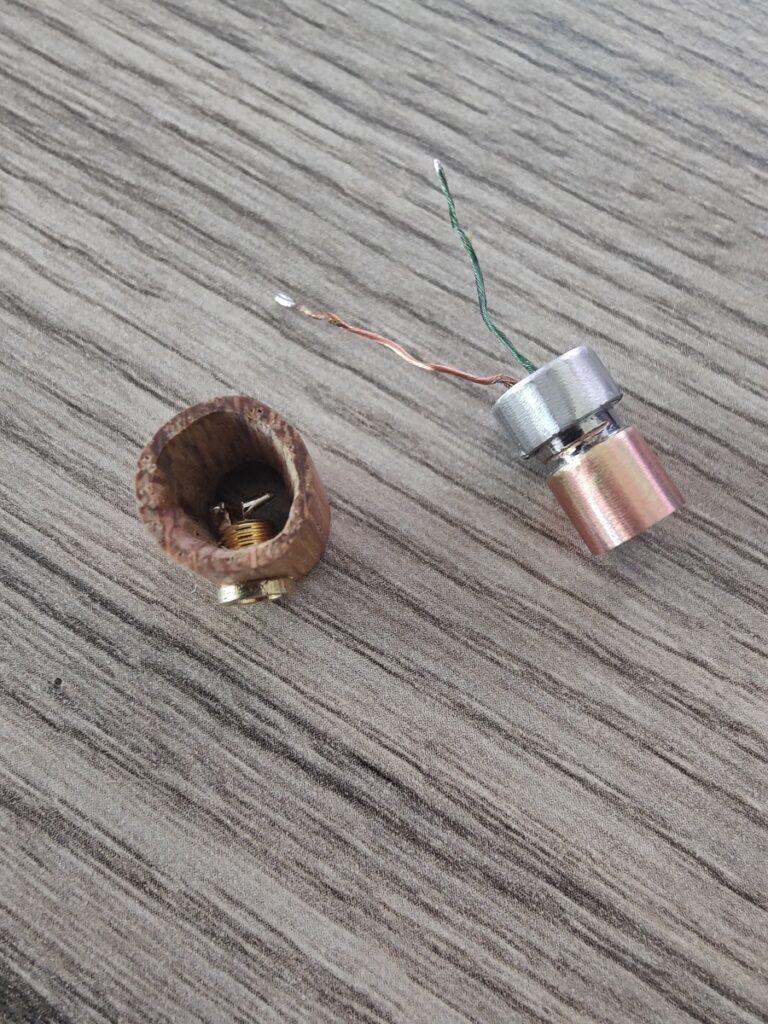

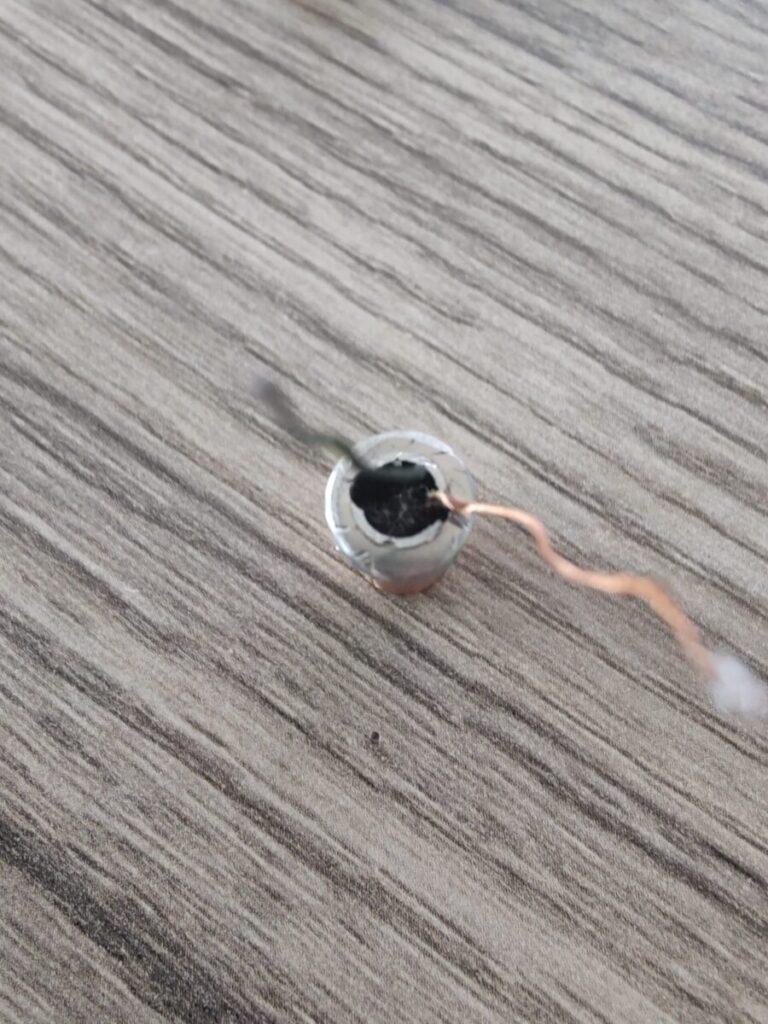

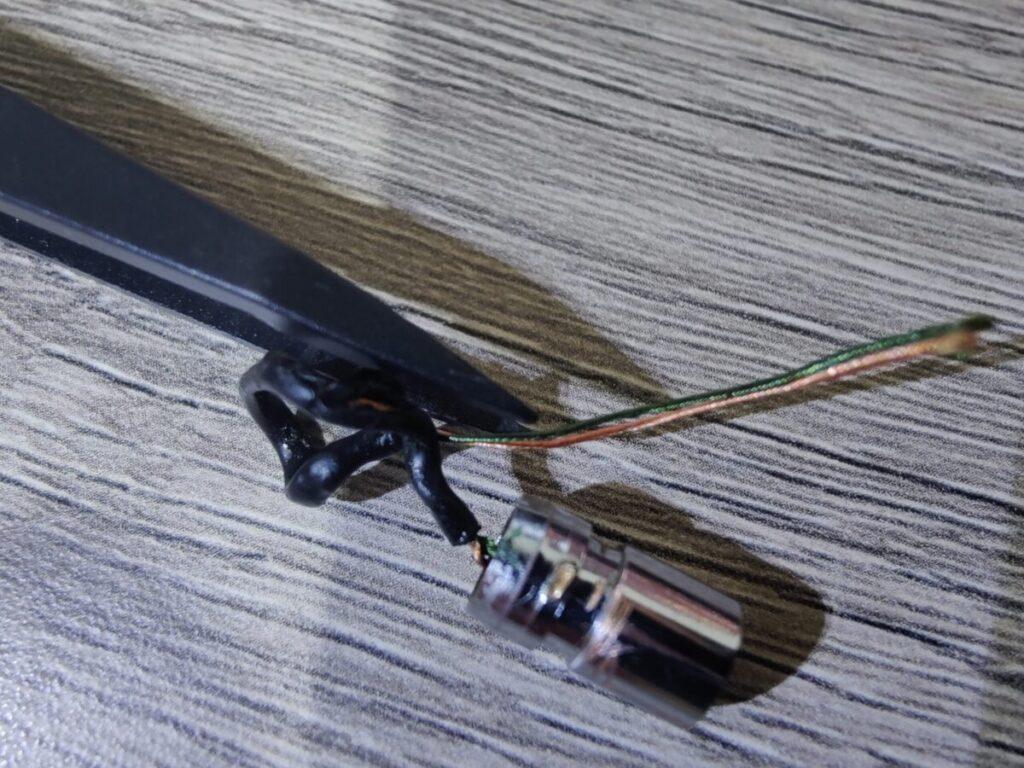

Then I soldered the cables. Placed the nozzles to the wood shells with just some glue in case I needed to open them later for tuning. I also closed the back of the wood shell by glueing the old wood faceplates from another IEM (Geekwold) and done some final sanding.

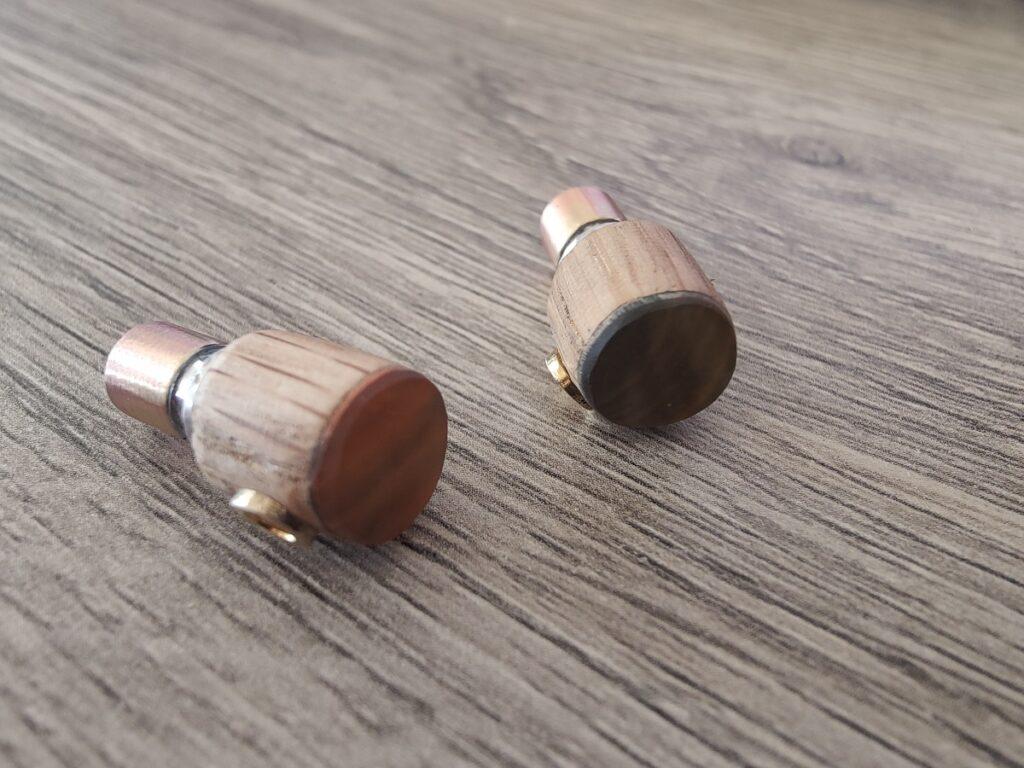

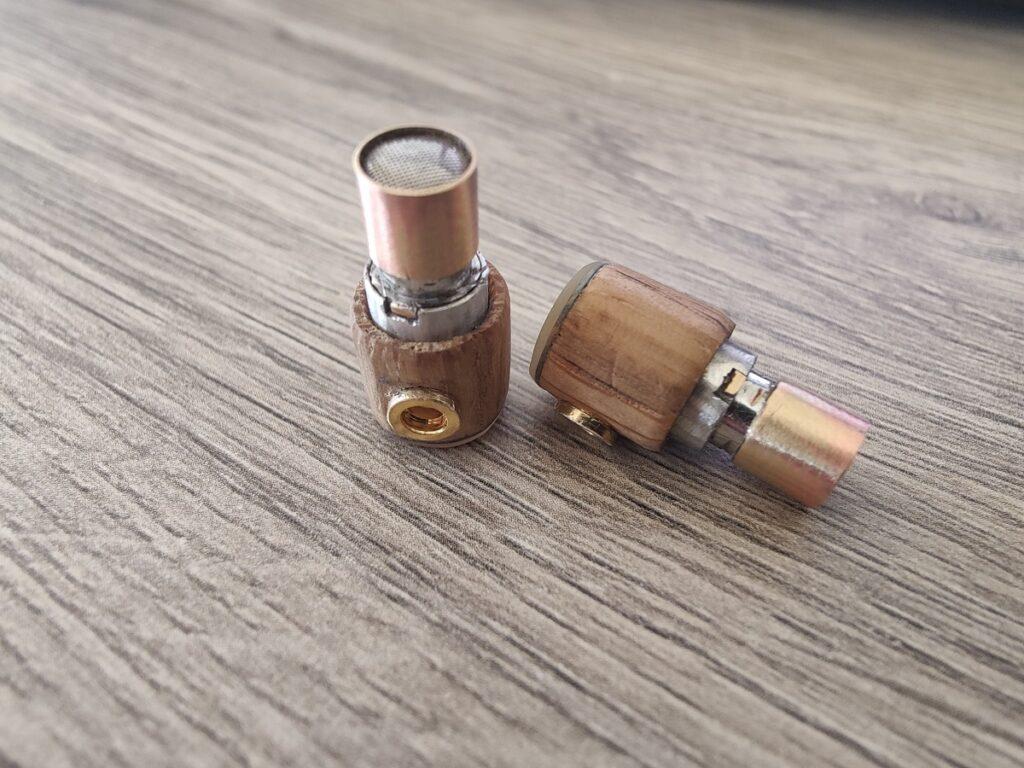

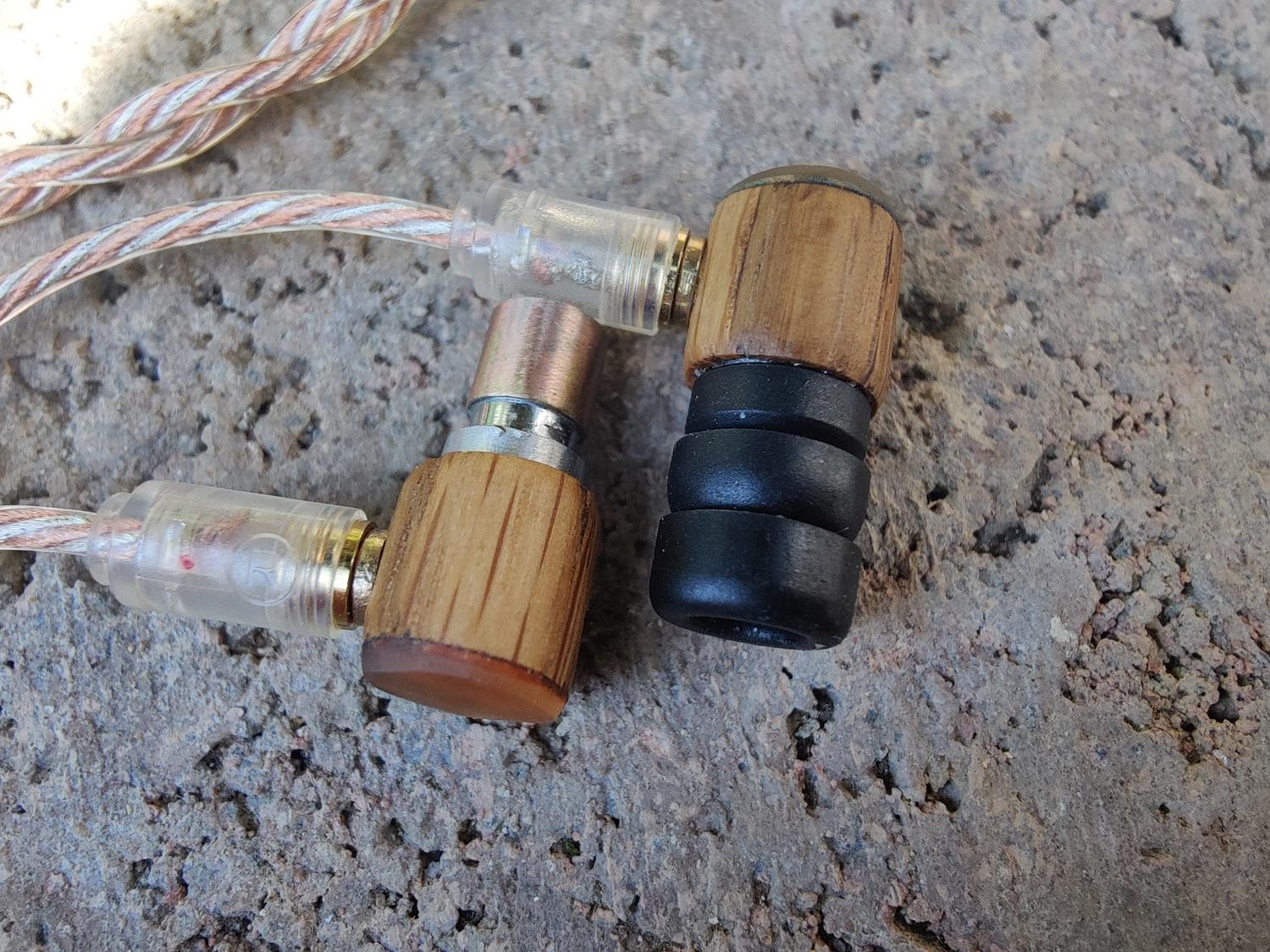

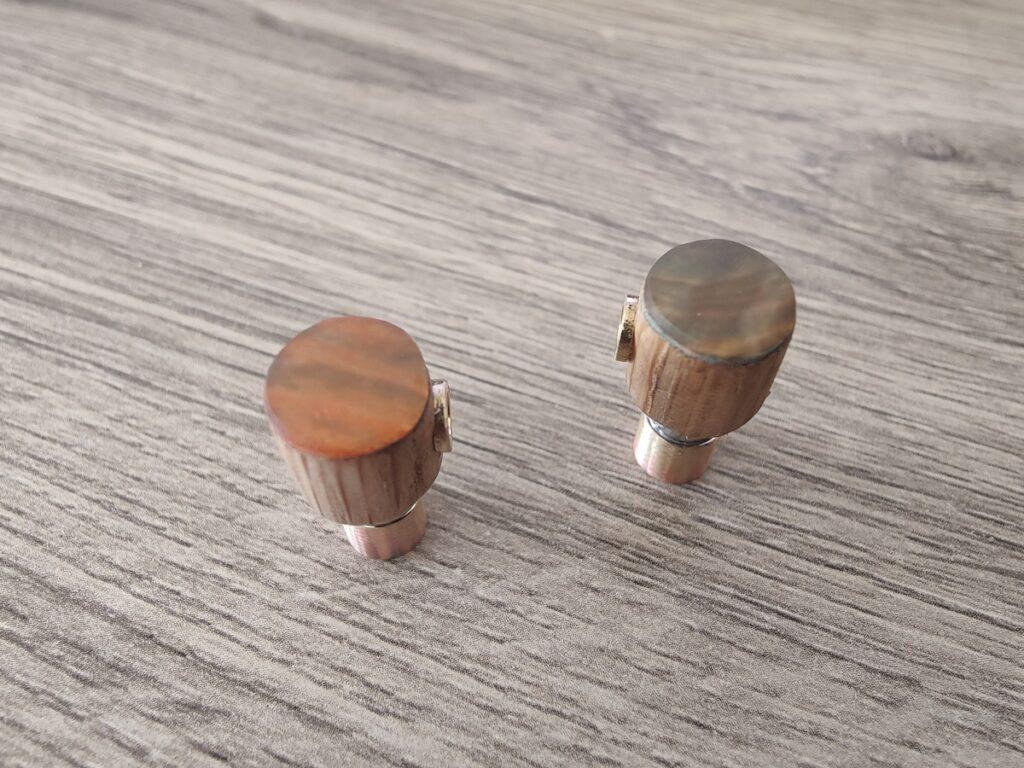

How do they look? 🙂 I was so frustrated after I crushed the aluminium shell but in the end, I am so happy with the wood shells which was not my plan at the beginning obviously. They look awesome and one of a kind 🙂

Yamaha EPH 100 teardown shell and sound mod 13

Yamaha EPH 100 teardown shell and sound mod 2 Yamaha EPH 100 teardown shell and sound mod 9

There is more. The sound. It turns out that the Mahony wood shells affected the sound much more than I imagined. If you are reading this you probably know how the EPH-100s sound. Add a huge soundstage, more dynamics and somehow uplifted mids to the original sound. I present you the Yamaha EPH-300 🙂
